Siemens 3RK2400-1BT30-0AA3
ASI K20 Compact Module, Digital A/B Slave, 2 DI/2 DQ, IP67
1 / 1

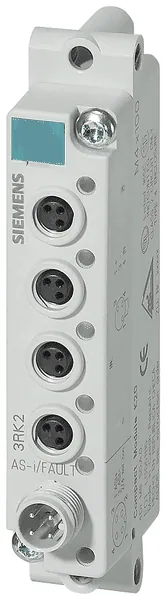

Manufacturer catalogue image
Product Description
RoHS CompliantLifecycle Status:
The AS-i compact module K20 is a digital A/B slave with 2 DI/2 DQ capabilities, offering IP67 protection. It features two input channels capable of handling up to 150 mA and two output channels that can supply up to 1 A at a maximum voltage of 24 V DC. All outputs are powered by a single 24 V DC source with a maximum current rating of 1 A. The module is equipped with four M8 sockets for easy integration into various systems.
This compact module is designed for use in industrial automation and control applications, where it can interface with a wide range of sensors and actuators. It supports both mechanical and 2- or 3-wire PNP sensors, ensuring compatibility with a broad spectrum of devices. The sensor supply current is limited to a maximum of 150 mA, while the output supply current for all outputs combined is capped at 1 A.
Send Inquiry
Payment methods:
Offer details
- Best offer from:
- Trusted supplier — Germany, member since 2024
- Availability:
- 1 pc.In-StockUpdated at: 11-09-2026
- Warranty:
- 24 months
- Condition:
- New Surplus
New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Siemens
- Output current
- 1 A
- IO link master
- System accessory
- Radio standard GSM
- Radio standard GPRS
- Radio standard UMTS
