Siemens 3VA1163-3GD42-0AA0
3VA11 4P 63A 25KA FTFM 100NTRL NUT
1 / 1

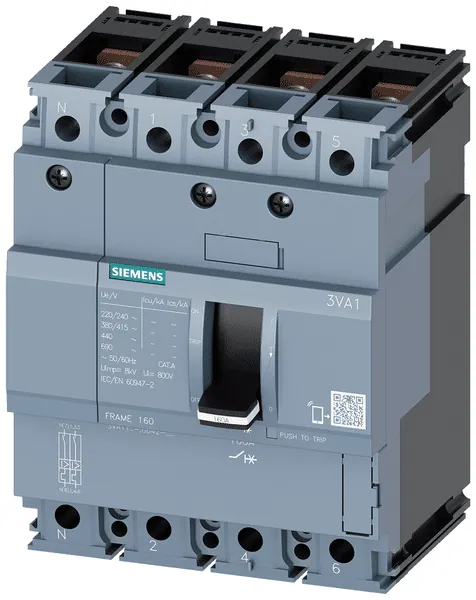

Manufacturer catalogue image
Product Description
Lifecycle Status:
The 3VA11 circuit breaker is a low voltage device designed for effective electrical protection, featuring a thermal-magnetic trip unit. This model operates at a rated current of 63A and supports a low breaking capacity classification (Class N), with a short-circuit breaking capacity of 25kA at 415V.
It includes a fixed overload protection setting at 63A and a short-circuit protection factor of 10 times the rated current. This 4-pole device is constructed for front-side connection and utilizes screw connections for its main current circuit. The Designation Code associated with this product provides identification for specific applications.
Additionally, it is noteworthy that this breaker is not suitable for DIN rail mounting, and it comes equipped with a nut keeper for enhanced connection stability. The dimensions of the unit are 4 x 5.1 x 3.5 inches, providing a compact solution for various installations.
Send Inquiry
Payment methods:
Offer details
- Best offer from:
Trusted supplier — Germany, member since 2024- Availability:
- 0 pcs.On RequestUpdated at: 02-09-2026
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Siemens
- Number of poles
- 4
- Rated voltage
- 690 V
- Motor drive optional
- Motor drive integrated
- Degree of protection (IP)
- IP40
- Rated permanent current Iu
- 63 A
Available Offers
(2)Access our platform to find more offers
Register now to explore 36 mln offers from verified suppliers worldwide.
- Compare offers globally
- Direct supplier contact
- RFQs, Quotes, and Orders
- BOM Search
Sign UpFree 14-day trial available
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Siemens 3VA1163-3GD42-0AA0, including specifications and features.
Download Data Sheet
TracePartsCAD Models
3D CAD model and technical drawings, ready for your design software.
Download CAD Model
