Siemens 6AG1210-1PE14-2UL1
SIPLUS G120 PM240-2 FSA 1.5kW
1 / 1

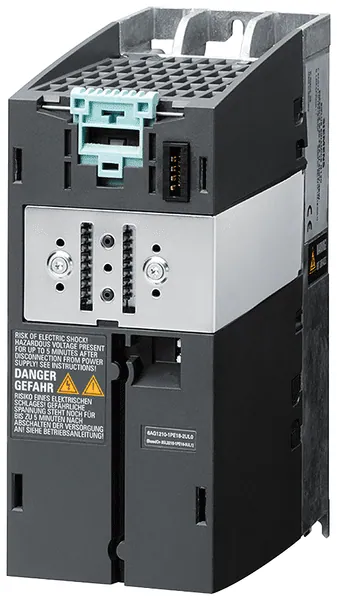

Manufacturer catalogue image
Product Description
RoHS CompliantLifecycle Status:
The SIPLUS G120 PM240-2 FSA-1.5kW is a high-performance motor control solution designed for industrial applications. It operates within the temperature range of -20°C to +50°C, equipped with conformal coating based on 6SL3210-1PE14-3UL1. This unfiltered unit features an integrated braking chopper capable of handling 380-480V AC power at a frequency range of 47-63Hz. The high overload capacity allows for 1.1kW output at 200% for 3 seconds, 150% for 57 seconds, and 100% for 240 seconds. In low overload conditions, it can deliver a maximum of 1.5kW output at 150% for 3 seconds, 110% for 57 seconds, and 100% for 240 seconds. The dimensions are 196mm x 73mm x 165mm (HxWxD). This product is designed with FSA protection, offering a degree of protection IP20 without the control unit and panel. It is approved for firmware-version V4.6.
Send Inquiry
Payment methods:
Offer details
- Best offer from:
Trusted supplier — Germany, member since 2024- Availability:
- 0 pcs.On RequestUpdated at: 04-09-2026
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Siemens
- Mains voltage
- 380 V
- Number of phases input
- 3
- With PC connection
- Number of phases output
- 3
- Max. output frequency
- 650 Hz
- With optical interface
