Siemens
6SL3210-1PE14-3AL1

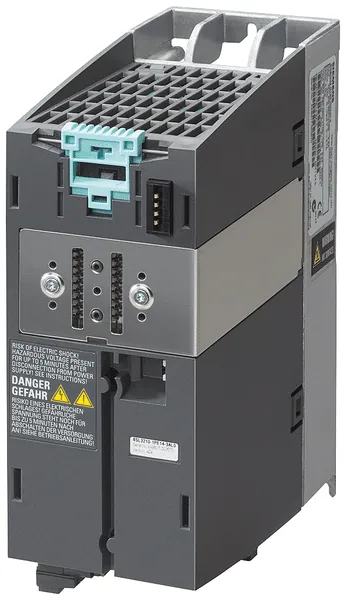

SINAMICS PM240-2 IP20-FSA-A-400V-1, 5KW
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
€199.82
1
Payment methods:
A total of 194 Parts In-Stock from 49 Distributors
Product Conditions:
Description
ActiveRoHS Compliant
SINAMICS g120 power module pm240-2 with built in cl. a filter with built in braking chopper 3AC380-480v +10/-10% 47-63HZ output high overload 1,1KW for 200% 3s,150% 57s,100% 240s ambient temp. -10 to +50 deg c output low overload 1,5KW at 150% 3s,110% 57s,100% 240s ambient temp. -10 to +40 deg c 196 x 73 x 165 (hxwxd), fsa protection IP20 without control unit and panel approved for firmware-version v4.6Additional Information
- Part Number
- 6SL3210-1PE14-3AL1
- UPC
- 887621779979
- Tariff Code
- 8504409540
- Country of Origin
- GB
- ETIM
- Group Code : EG000017
- Group Description : Low-voltage Industrial Components
- Class Description : Frequency converter =< 1 kV
- Class Code : EC001857
- Version : 7
Specifications
- Brand
- SINAMICS
- Width
- 73 millimetre
- Depth
- 165 millimetre
- Height
- 196 millimetre
- Input phase number
- 3
- Net weight
- 2 kilogram
- Protection type IP
- IP20
- Output phases, number of
- 3
- Max. mains voltage
- 480 volt
- Min. network voltage
- 380 volt
- Rated output voltage
- 400 volt
- Brake chopper integrated
- true
- Max. output frequency
- 550 hertz
- Rated output current
- 4.1 ampere
- Description of product type
- PM240-2
- Design of frequency changer
- U converter
- Use in the industrial area permissible
- true
- Power loss, static, current-independent [Pls]
- 12 watt
- Relative symmetric mains voltage tolerance
- 10 percent
- Relative symmetric mains frequency tolerance
- 5 percent
- Max. output power with square load at rated output voltage
- 2 kilowatt
- Max. output power with linear load and rated output voltage
- 1 kilowatt
- Country of Origin
- GB
