Siemens 6SL3220-2YE34-1UB0

Name: G120X IP20 380...480V 30kW FSD UF
Brand: Siemens
SKU: 6SL3220-2YE34-1UB0

G120X IP20 380...480V 30kW FSD UF

1 / 2

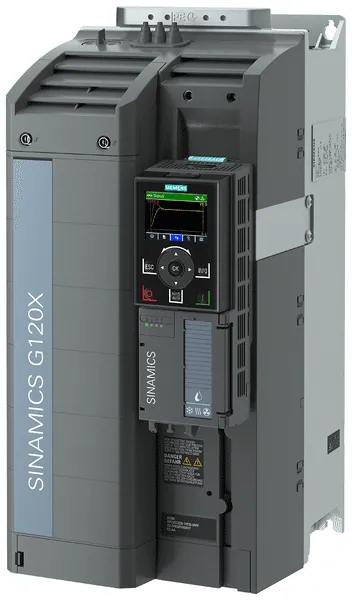

Manufacturer catalogue image

Product Description

RoHS CompliantLifecycle Status:

The G120X industrial drive features a rated power output of 30 kW, with the capability to handle 110% of this power for a duration of 60 seconds and maintain 100% for up to 240 seconds. It is designed to operate within a voltage range of 380-480V AC, accepting a variation of +10% to -20%, and supports frequencies from 47 to 63 Hz.

This model is categorized as FSD and offers an IP20 degree of protection. Its dimensions are 472 mm in height, 200 mm in width, and 239 mm in depth. The drive operates effectively in ambient temperatures from -20°C to +45°C and delivers output through three phases.

Equipped with a Basic Operator Panel, the G120X provides enhanced connectivity through multiple I/O expansions, facilitating integration into various industrial automation applications. The drive supports MODBUS protocol, making it versatile for different communication needs.

Send Inquiry

Payment methods:

Offer details

Best offer from:: Trusted supplier — Italy, member since 2021, 10–19 employees
Availability:: 0 pcs.
On Request
Updated at: 14-09-2026
Warranty:: 12 months
Condition:: New Factory Sealed

New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.

The Seller is responsible for shipping the product and invoicing

Specifications

Brand: Siemens
Mains voltage: 380 V
Mains frequency: 50/60 Hz
Number of phases input: 3
With PC connection
Number of phases output: 3
Number of digital inputs: 6

Access our platform to find more offers

Compare offers globally
Direct supplier contact
RFQs, Quotes, and Orders
BOM Search

Sign UpFree 14-day trial available

Offer with manufacturer lead time

Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.

Get Quote

Documents

Data Sheet

Datasheet for Siemens 6SL3220-2YE34-1UB0, including specifications and features.

Download Data Sheet

TraceParts

CAD Models

3D CAD model and technical drawings, ready for your design software.

Download CAD Model
