Weidmuller 1148280000
PCB Plug-In Connector, Male Header, 15 Poles, 180°
Product Description
This PCB plug-in connector is engineered for through-hole soldering with a male header configuration. It accommodates 15 poles, arranged at a 180° angle, and has a solder pin length of 3.2 mm. The connector's dimensions include a width of 86 mm and a height of 15.2 mm, making it suitable for various PCB applications. This component is part of the OMNIMATE Signal series, specifically the SL 5.08 variant, which utilizes a pitch of 5.08 mm.

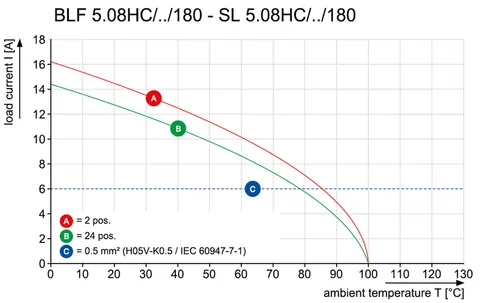

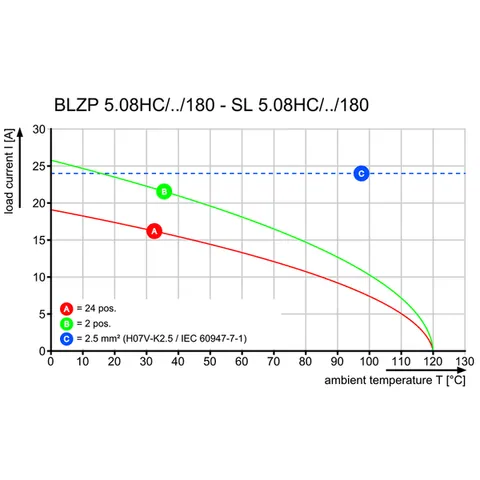

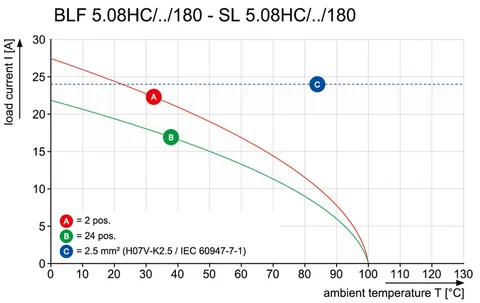

Constructed from PA GF insulating material with a striking orange color, this connector meets numerous standards, including UL 1059 and IEC specifications. It has a rated voltage of 300 V and supports a current rating of 18.5 A under specific conditions. The connector is designed to withstand operational temperatures ranging from -50 °C to 100 °C, ensuring reliability in diverse environments.
Additionally, it features tinned CuMg contacts with a robust flammability rating of UL 94 V-0, and the insulation strength exceeds 108 Ω. The connector is also compliant with several approvals, including cURus, EAC, and KEMAKEUR, ensuring it adheres to international safety and quality standards.
Offer details
- Best offer from:
Trusted supplier — Italy, member since 2021, 10–19 employees- Availability:
- 0 pcs.On RequestUpdated at: 14-09-2026
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Weidmuller
- Institute (cURus)
- cURus
- Certificate No. (cURus)
- E60693
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated voltage (Use group D / UL 1059)
- 300 V
- Rated current (Use group B / UL 1059)
- 18.5 A
- Rated current (Use group D / UL 1059)
- 10 A
