Weidmuller 1148430000

The product consists of a 5.08 mm PCB plug-in connector designed as a male header with an open side. It accommodates 17 poles and utilizes a THT solder connection, with a solder pin length of 3.2 mm. The connector is finished in black and is packaged in a box.

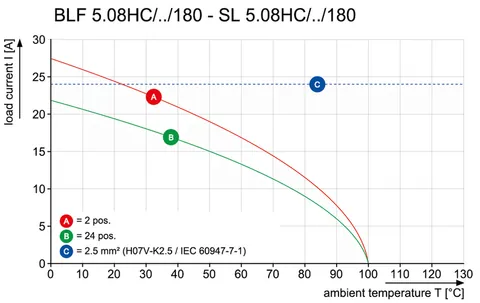

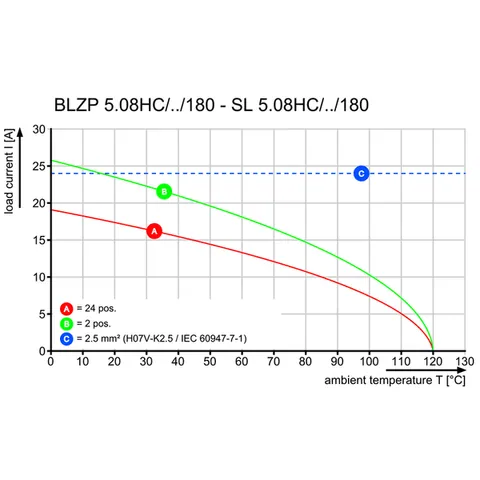

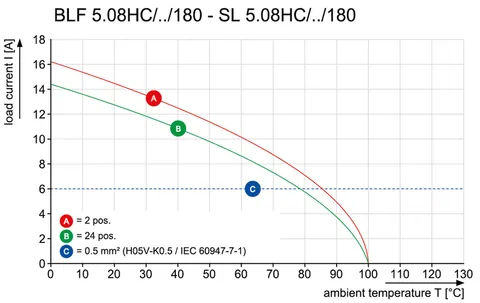

Rated for a voltage of 300 V according to UL 1059 for both use groups B and D, the connector supports a rated current of 18.5 A under use group B conditions. For use group D, the rated current is 10 A. Additionally, it complies with IEC standards, allowing for a rated current up to 24 A with a minimum number of poles at 20°C.

Constructed from PA GF insulating material, the connector has a high comparative tracking index (CTI) of ≥ 550 and meets the flammability rating of UL 94 V-0. The connector is designed for operating temperatures between -50 °C and 100 °C, ensuring versatility in various applications.

It features a 180° outgoing elbow and is compatible with a board connection type, enabling efficient PCB mounting. The dimensions of the connector include a width of 86.36 mm, a height of 15.2 mm, and a depth of 8.5 mm. The product family is identified as OMNIMATE Signal - series BL/SL 5.08, and it is designed for a maximum pulling force of 7.5 N per pole.
