Weidmuller 1150610300

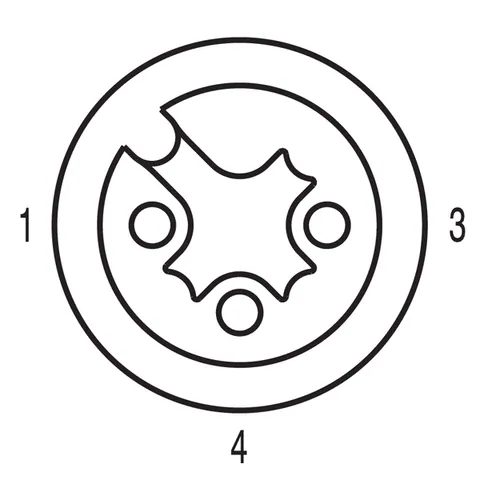

This M12 connector cable features a connection type of M12 / M12 with a 3-pole configuration, making it suitable for various sensor and actuator applications. The cable length is 3 meters, and it has straight pin and socket connectors. The housing is constructed from PUR, ensuring flexibility and durability.

The product complies with IEC 61076-2-101 standards and has a rated voltage of 250 V with a current rating of 4 A. It is designed to withstand harsh environmental conditions, offering a protection degree of IP65, IP66, IP67, and IP68 when properly installed. With a temperature range of -25 to +80 °C, this cable is suitable for both stationary and moving applications.

In terms of construction, the cable has a core cross-section of 0.34 mm² and an outside diameter of 4.3 ± 0.2 mm. It does not feature shielding and is halogen-free. The cable is resistant to oils and has been tested for flame resistance according to various standards.

Additionally, it has a minimum bending radius of 5 times the cable diameter for stationary use and 10 times for moving applications. With a performance rating for bending cycles of up to 2 million, this cable is engineered for longevity and reliability.

For more details, refer to the product’s classification under the Designation Code.
