Weidmuller 1279461000

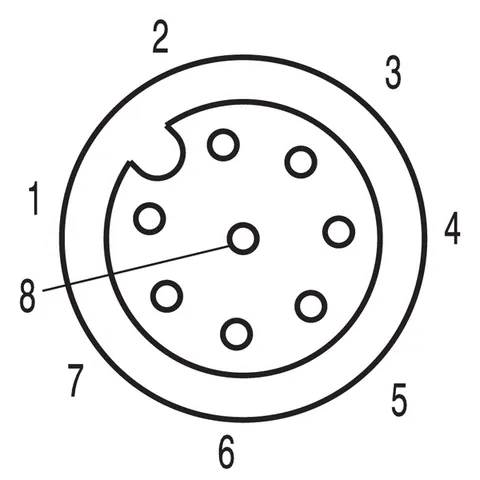

This M12 connector cable is designed for sensor and actuator applications, featuring a length of 10 meters and a configuration of 8 poles. The connection type is a straight socket with a pin layout. The cable is constructed from a durable PUR sheath, ensuring flexibility and resistance to environmental factors, while the brass, nickel-plated threaded ring provides robust connectivity.

It meets the IEC 61076-2-101 connector standard and is rated for a maximum voltage of 30 V and a current of 2 A. With an IP67 protection degree when properly installed, it is suitable for various industrial environments. The cable supports a temperature range of -25 to +80 °C and is designed for over 100 plugging cycles, making it a reliable choice for continuous use.

The core cross-section measures 0.25 mm², and the outside diameter is 6.3 ± 0.2 mm. The cable is shielded and features a color-coded scheme for easy identification. Additionally, it is compliant with REACH regulations regarding hazardous substances, specifically concerning lead (7439-92-1). This product is classified under ETIM 6.0 as EC001855 and conforms to various environmental specifications.
