Weidmuller 1011971000

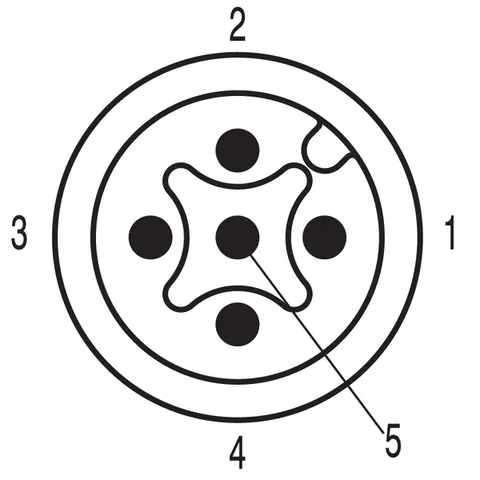

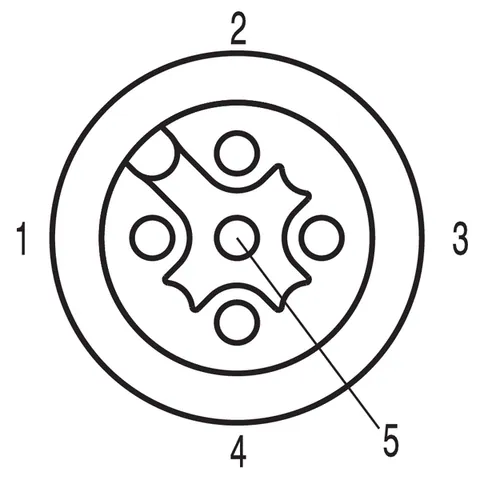

This M12 connector cable is designed for sensor and actuator applications, featuring a 5-pole configuration and a length of 10 meters. The construction includes a straight pin and socket connection, made from durable PUR material. The connector adheres to IEC 61076-2-101 standards, ensuring compatibility and reliable performance.

The cable is rated for a voltage of 125 V and a current of 4 A, with a temperature range suitable for both stationary and moving applications, extending from -40 °C to +105 °C. It features a gold-plated contact surface, enhancing conductivity. The protection class is IP65, IP66, IP67, and IP68 when securely connected, making it suitable for demanding environments.

With a net weight of 381 g, the cable supports a minimum bending radius of 4 times the cable diameter when stationary and 7.5 times when in motion. It also withstands bending cycles up to 10 million and is resistant to welding beads, affirming its durability in industrial settings. The cable's specifications include a core cross-section of 0.34 mm² and an outer diameter of 5.1 ± 0.2 mm. Notably, it is not shielded and does not feature an LED indicator.
