Weidmuller 9457270150

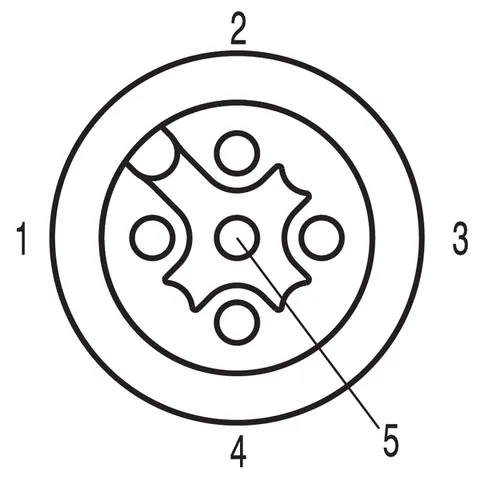

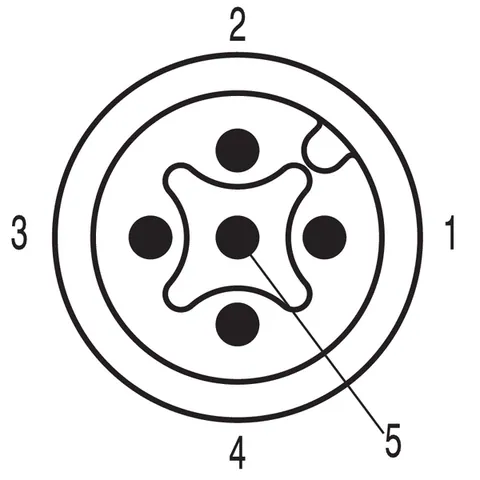

This M12 connector cable, designated as SAIL-M12GM12W-5-1.5U, has a length of 1.5 meters and incorporates 5 poles with a pin configuration. The cable is designed for robust connectivity, featuring a straight socket at one end and a 90° angled socket at the other. Constructed from PUR, the sheath is black and halogen-free, providing resistance to a variety of environmental factors.

With a rated voltage of 125 V and a rated current of 4 A, this cable ensures reliable performance in diverse applications. It has a protection degree of IP65, IP66, IP67, and IP68 when properly secured, making it suitable for use in challenging conditions. The product can withstand temperatures ranging from -25°C to +80°C, which adds to its versatility.

The cable’s core features a cross-section of 0.34 mm² and complies with UL AWM styles, ensuring high-quality construction and safety. It is engineered to endure bending cycles of up to 2 million and has a minimum bending radius of 10 times the cable diameter when in motion, thereby facilitating flexibility in various installations. The connector follows IEC 61076-2-101 standards, confirming its compatibility with industry requirements.
