Schneider Electric
STBDDI3725KC

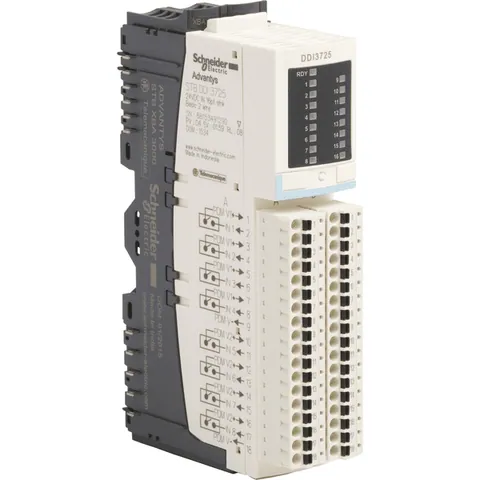

basic digital input kit, Modicon STB, 24V DC, 16I, spring clamp connector
- Consigue plazos de pago de hasta 90 días de 500+ proveedores.
- Descuentos de reventa de hasta el 40%!
$212.46
1
Formas de pago:
Un total de 151 Parts In-Stock de 26 Distributors
Condiciones del producto:
Oferta con plazo de entrega del fabricante
Entrega:Bajo pedido
El mejor precio:
€88.52
Additional Information
- Part Number
- STBDDI3725KC
- UNSPSC
- 32151601
- Tariff Code
- 8536908585
- Country of Origin
- ID
Environment
- Product Certifications
- FM Class 1 Division 2 || UL || CSA
- Ambient Air Temperature For Storage
- -40...185 °F without derating
- Standards
- EN/IEC 61131-2 type 3
- Ambient Air Temperature For Operation
- -25-70 °C without derating)
- Shock Resistance
- 30 gn 11 ms IEC 88 reference 2-27
- Vibration Resistance
- 3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail || +/-0.35 mm 10-58 Hz
- Ip Degree Of Protection
- IP20 conforming to EN 61131-2 class 1
- Pollution Degree
- 2 IEC 60664-1
- Ambient Air Temperature For Storage
- -40-85 °C without derating
- Relative Humidity
- 95-95 % 60-60 °C without condensation
- Operating Altitude
- <= 6561.68 ft (2000 m)
- Ambient Air Temperature For Operation
- 32...140 °F without derating
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Insulation Between Channels And Logic Bus
- 1500 V for 1 minute
- Cold Swapping
- yes
- Height
- 125 mm
- Status Led
- 1 LED (Green) module status (RDY) || 1 LED per channel (Green) channel status (IN1 to IN16)
- Hot Swapping Fallback
- yes for basic NIMs
- Permissible Voltage
- 30 V
- Supply
- power distribution module
- Protection Type
- power protection integrated fuse on PDM time lag 5 A || input protection resistor-limited || reverse polarity protection
- Current Consumption
- 100 mA 5 V DC logic bus
- Discrete Input Current
- 4.5 mA
- Marking
- CE
- Current State 0 Guaranteed
- <= 1.5 mA
- Net Weight
- 0.086 kg
- Current State 1 Guaranteed
- >= 2.5 mA
- Input Voltage Limits
- 11...30 V at state 1 || -3...5 V at state 0
- Discrete Input Logic
- positive
- Response Time
- 2 ms off-to-on || 2 ms on-to-off
- Width
- 28.1 mm
- Overvoltage Category
- II
- Depth
- 65.1 mm
- Product Compatibility
- I/O base STBXBA3000 || power distribution module STBPDT3100/3105
- [Us] Rated Supply Voltage
- 24 V DC
Specifications
- Range Of Product
- Modicon STB distributed I/O solution
- Discrete Input Voltage
- 24 V
- Discrete Input Voltage Type
- DC
- Product Or Component Type
- basic digital input kit
- Discrete Input Number
- 16
- Kit Composition
- STBXTS2180, 18-terminal spring clamp connector || STBDDI3725 module || STBXBA3000 base
