ABB
- Available:
- 1 pc.On RequestUpdated at: 22-08-2026
- Offer from:
Trusted supplier — Romania, member since 2023, 1–4 employees
Need more information?
Call us at:+48 17 778 34 19
ABB 1SBL157001R1101
AF12 3P CONTR, 1NC, 24-60VAC, 20
1 / 1

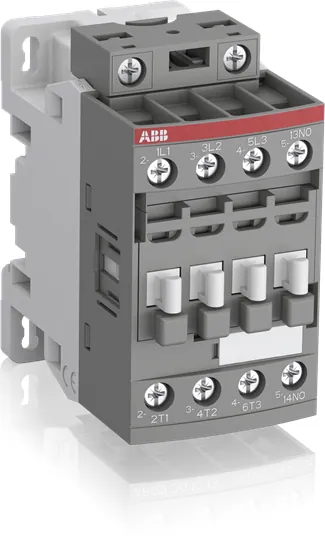

Manufacturer catalogue image
Product Description
AF12 contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. AF... contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC. AF contactors can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. AF contactors have built-in surge protection and do not require additional surge suppressors. The AF... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) - Control circuit: AC or DC operated - Accessories: a wide range of accessories is available. Note: AF..-30-..-11 not suitable for a direct control by PLC-output. AF..-30-..-11 contactor type available in some countries: please consult your ABB representative.
Send Inquiry
Payment methods:
Offer details
- Best offer from:
Trusted supplier — United Kingdom, member since 2021- Availability:
- 2 pcs.In-StockUpdated at: 31-10-2025
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- ABB
- American Recovery and Reinvestment Act (ARRA) Compliant
- Contact Manufacturer
- Buy American Act (BAA) Compliant
- Contact Manufacturer
- Rated Control Circuit Voltage
- 50 Hz /60 Hz 24 ... 60 V/DC Operation 20 ... 60 V
- Terminal Type
- Screw Terminals
- Minimum Order Quantity
- 1 piece
- Data Sheet, Technical Information
- 1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Available Offers
(3):fill(white):quality(80)/media/thumbor)
ABB
- Available:
- 5 pcs.In-StockUpdated at: 05-09-2026
- Offer from:
Trusted supplier — Poland, member since 2023, 50–99 employees- Warranty:
- 24 months
Access our platform to find more offers
Register now to explore 36 mln offers from verified suppliers worldwide.
- Compare offers globally
- Direct supplier contact
- RFQs, Quotes, and Orders
- BOM Search
Sign UpFree 14-day trial available
Documents
Data Sheet
Datasheet for ABB 1SBL157001R1101, including specifications and features.
Download Data Sheet
TracePartsCAD Models
3D CAD model and technical drawings, ready for your design software.
Download CAD Model
Related products
ABB
Reliable 3-pole contactor with wide control voltage range and built-in surge protection.
ABB
The AF16Z-30-10-21 is a 3 pole contactor with built-in auxiliary contacts and screw terminals, designed for controlling motors up to 7.5 kW / 400 V AC or 10 hp / 480 V UL and switching power circuits up to 30 A.
ABB
Front operated, base mounted switch-disconnector with black IP65 handle and shaft.
ABB
AF30 contactors are designed to manage power circuits up to 690 V AC and 220 V DC, primarily used for controlling 3-phase motors and non-inductive or slightly inductive loads.
