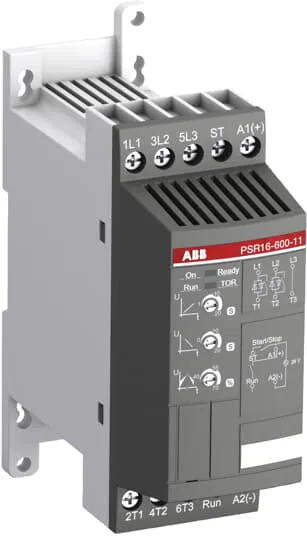

ABB 1SFA896107R1100PSR16-600-11 Softstarter - 16 A - 208 ... 600 V AC

Name: PSR16-600-11 Softstarter - 16 A - 208 ... 600 V AC
Brand: ABB
SKU: 63a385fcca04b4f259334ec8
Price: 220.50 EUR
Availability: InStock

1 / 5

Reference Image - Not actual item!

Offer Description

PSR16-600-11 Softstarter - 16 A - 208 ... 600 V AC

Product Description

The softstarter PSR16-600-11 has a rated maximum operational current of 16 A with an operating voltage span from 208...600 V AC. The rated control voltage is 24 V AC/DC. PSR features a two-phase control soft start and stop through a voltage ramp. It has built-in bypass for easy installation and energy saving. A RUN signal is available from a relay output in NO (normally open state). The start/stop ramp and time is easy to set by three potentiometers on the front. PSR is often used in combination with a manual motor starter (MMS) from ABB, so mechanical connection kits are available. Another popular option is Fieldbus communication, which can be enabled by an external adaptor and a Fieldbus plug. The PSR range is our most compact softstarters with basic functionality and values. They are suitable for small three-phase motors with nominal currents from 3...105 A and can manage up to 100 starts per hour. Common applications are, for example, pumps, fans, compressors, and conveyors.

Product Details

Brand: ABB
Part Number: 1SFA896107R1100
EAN: 39121521
UNSPSC: 39121521

ETIM

Group Code : EG000017

Group Description : Low-voltage Industrial Components

Class Description : Soft starter

Class Code : EC000640

Version : 7

≈

$240.35

excl. tax

Supplier Price

€220.50

€245.00

Shipping from:

€140.00

Offer details

Best offer from:: Trusted Automa.Net Supplier
Availability:: 1 pc.
In-Stock
Updated at: 13-07-2025
Warranty:: 24 months
Estimated Delivery:: 16-22 July to United States
Condition:: New Factory Sealed

New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.

The Seller is responsible for shipping the product and invoicing

Are you a Supplier?

Join 650 suppliers, sell to 3500+ verified buyers.

Check other offers

Country	Conditions	Qty	Price
PL	New Factory Sealed	1	≈ $277.95
US	New Factory Sealed	3	$678.77

New Factory Sealed

≈

$277.95

New Factory Sealed

$678.77

A total of 5 Parts In-Stock from 3 Distributors

Policies and Information

Shipping Information

Return & Refund Policies

14 days for return

Secure Payment Process

Warranty Policies

Available Offers

(2)

In-Stock offers

ABB

Available:: 1 pc.
In-Stock
Updated at: 13-07-2025

Offer from:: Trusted Automa.Net Supplier
Estimated Delivery:: 17-22 July to United States
Warranty:: 24 months

≈

$277.95

excl. tax

Supplier Price

€255.00

Free Shipping!

ABB

Available:: 3 pcs.
In-Stock
Updated at: 13-07-2025

Offer from:: Trusted Automa.Net Supplier
Estimated Delivery:: 18-23 July to United States
Warranty:: 12 months

$678.77

excl. tax

Free Shipping!

Dimensions

Product Net Width: 114 mm
Product Net Height: 140 mm
Product Net Depth / Length: 45 mm
Product Net Weight: 0.4 kg

Technical

Rated Operational Voltage: 208 ... 600 V AC
Rated Control Supply Voltage (Us): 24 V AC/DC
Rated Control Circuit Voltage (Uc): 24 V DC
Rated Frequency (f): 50/60 HzMain Circuit 50 / 60 Hz
Rated Operational Power - In-Line Connection (Pe): (230 V) 4 kW(400 V) 7.5 kW(500 V) 7.5 kW
Rated Operational Current - In-Line Connection (Ie): 16 A
Service Factor Percentage: 100 %
Overload Protection: Recommended MS132 10.00 ... 16.00
Integrated Electronic Overload: No
Adjustable Rated Motor Current Ie: No
Starting Capacity at Maximum Rated Current Ie: 4xIe for 6s
Ramp Time: 0 ... 20 second [unit of time]1 ... 10 second [unit of time]
Initial Voltage During Start: 40 ... 70 %
Step Down Voltage Special Ramp: 100 ... 60 %
Current Limit Function: No
Switch for Inside Delta Connection: No
Run Signal Relay: Yes
By-pass Signal Relay: No
Fault Signal Relay: No
Overload Signal Relay: No
Signal Indication Completed Start Ramp (LED): Green
Signal Indication Ready to Start/Standby ON (LED): Green
Signal Indication Running R (LED): Green
Signal Indication Ramping Up/Down (LED): Green
Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time: 10
Communication: FiledBusPlug(Optional)
Degree of Protection: IP20
Terminal Type: Screw Terminals
Connecting Capacity Main Circuit: Rigid 1/2 x 0.75 ... 2.5 mm²
Connecting Capacity Control Circuit: 1 x 0.75 ... 2.52 x 0.75 ... 2.5 mm²Rigid 1/2 x 0.75 ... 2.5 mm²
Connecting Capacity Supply Circuit: Rigid 1/2 x 0.75 ... 2.5 mm²
Tightening Torque: Control Circuit 1 N·mMain Circuit 1 N·mSupply Circuit 1 N·m
Product Main Type: PSR16
Function: Soft start with voltage rampSoft stop with voltage ramp

Classifications

Object Classification Code: Q
ETIM 9: EC000640 - Soft starter
EClass: V11.0 : 27370907
IDEA Granular Category Code (IGCC): 4740 >> Soft starter

Environmental

Ambient Air Temperature: Operation -25 ... +60 °CStorage -40 ... +70 °C
Degree of Protection: IP20
RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment

Technical UL/CSA

Maximum Operating Voltage UL/CSA: Main Circuit 600 V
Tightening Torque UL/CSA: Control Circuit 8.9 in·lbMain Circuit 8.9Supply Circuit 8.9 in·lb
