ABB
1SFA897111R7000
1 / 4
Description

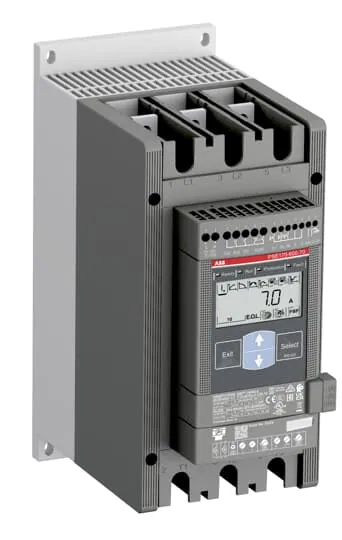

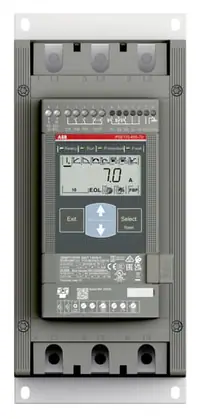

The softstarter PSE170-600-70 has a rated maximum operational current of 170 A with an operating voltage span from 208...600 V AC. The rated control voltage is between 100...250 V AC at 50/60 Hz. PSE features a two-phase control with a soft start and stop through a voltage or a torque ramp. It has built-in bypass for easy installation and energy saving. A RUN, TOR, and Event signal is available from a relay output in NO (normally open state). The PSE has functions such as current limit, kickstart, analog output, EOL, underload, and locked rotor protection. To interact with PSE, it has an Illuminated display that uses symbols to become language neutral. As an option, you can add an identical external keypad with a rating of IP66. There are three ways to communicate with PSE. It can be done by hardwire inputs Start/Stop or by Reset of fault. Another popular option is the built-in fieldbus communication Modbus RTU. You can also use an external adaptor and a Fieldbus plug. PSE is a true general purpose softstarter. It’s a perfect balance between high starting capacity and cost efficiency. Very suitable for small to medium-sized three-phase motors with nominal currents from 18...370 A. Typical applications are, for example, pumps, fans, compressors, and conveyors.- Part Number
- 1SFA897111R7000
- UPC
- 73205004006920
- UNSPSC
- 39121521
- ETIM
- Group Code : EG000017
- Group Description : Low-voltage Industrial Components
- Class Description : Soft starter
- Class Code : EC000640
- Version : 7
€1,078.74
net€1,198.60
Shipping from:
€80.00
1
Payment methods:
- Best offer from:
Trusted Automa.Net Supplier- Availability:
- 1 pc.In-StockUpdated at: 21-11-2024
- Warranty:
- 24 months
- Estimated Delivery:
- 02-04 December to United Kingdom
- Condition:
- Refurbished
Refurbished - A refurbished item inspected, cleaned, and repaired to full working order by either the manufacturer or a certified technician. The item is in excellent condition and fully operational.
Secure Payment Process
Return & Refund Policies
Shipping Policies
Warranty Policies
Dimensions
- Product Net Width
- 130 mm
- Product Net Height
- 295 mm
- Product Net Depth / Length
- 220 mm
- Product Net Weight
- 4.4 kg
Technical
- Rated Operational Voltage
- 208 ... 600 V AC
- Rated Control Supply Voltage (Us)
- 100 ... 250 V AC
- Rated Control Circuit Voltage (Uc)
- 24 V DC
- Rated Frequency (f)
- 50/60 HzMain Circuit 50 / 60 Hz
- Rated Operational Power - In-Line Connection (Pe)
- (230 V) 45 kW(400 V) 90 kW(500 V) 110 kW
- Rated Operational Current - In-Line Connection (Ie)
- 171 A
- Service Factor Percentage
- 100 %
- Overload Protection
- Build-in electronic overload protection
- Integrated Electronic Overload
- Yes
- Adjustable Rated Motor Current Ie
- 30 ... 100 %
- Starting Capacity at Maximum Rated Current Ie
- 4xIe for 10s
- Ramp Time
- 0 ... 30 second [unit of time]1 ... 30 second [unit of time]
- Initial Voltage During Start
- 30 ... 70 %
- Step Down Voltage Special Ramp
- No %
- Current Limit Function
- 1.5 ... 7xIe
- Switch for Inside Delta Connection
- No
- Run Signal Relay
- Yes
- By-pass Signal Relay
- Yes
- Fault Signal Relay
- Yes
- Overload Signal Relay
- Yes
- Analog Outputs
- 4…20 mA
- Signal Indication Completed Start Ramp (LED)
- Green
- Signal Indication Ready to Start/Standby ON (LED)
- Green
- Signal Indication Running R (LED)
- Green
- Signal Indication Ramping Up/Down (LED)
- Green
- Signal Indication Protection (LED)
- Yellow
- Signal Indication Fault (LED)
- Red
- Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time
- 10
- Communication
- Modbus-RTU
- Degree of Protection
- IP00
- Terminal Type
- Main Circuit: Bars
- Connecting Capacity Main Circuit
- Hole Diameter 8.5 mmRigid 1/2 x 2.5 ... 70 mm²Width and Thickness 17.5x5 mm
- Connecting Capacity Control Circuit
- Rigid 1 x 2.5 mm²Rigid 2 x 1.5 mm²
- Connecting Capacity Supply Circuit
- Rigid 1 x 2.5 mm²
- Tightening Torque
- Control Circuit 0.5 N·mMain Circuit 18 N·mSupply Circuit 0.5 N·m
- Product Main Type
- PSE170
- Function
- Soft start with torque controlSoft start with voltage rampSoft stop with torque controlSoft stop with voltage rampKick startSequence startCurrent limitStart reverse (external contactors)Automatic restartEvent log
- Protection Function
- Electronic overload protection, EOL; Locked rotor protection; Current underload protection
Classifications
- Object Classification Code
- Q
- ETIM 9
- EC000640 - Soft starter
- EClass
- V11.0 : 27370907
- IDEA Granular Category Code (IGCC)
- 4740 >> Soft starter
Environmental
- Ambient Air Temperature
- Operation -25 ... +60 °CStorage -40 ... +70 °C
- Degree of Protection
- IP00
- RoHS Status
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Technical UL/CSA
- Maximum Operating Voltage UL/CSA
- Main Circuit 600 V
- Tightening Torque UL/CSA
- Control Circuit 4.4 in·lbMain Circuit 159.3Supply Circuit 4.4 in·lb
Ordering
- Minimum Order Quantity
- 1 piece
- Customs Tariff Number
- 85371091
