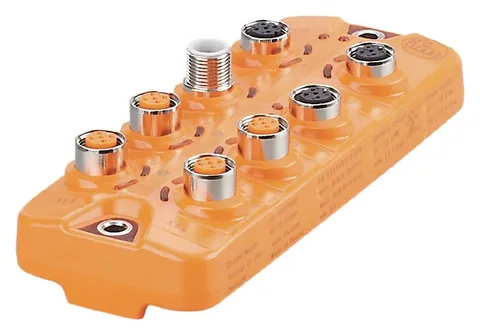

IFM AL1324

The IO-Link Master DL EIP 4P IP67 is designed to effectively separate automation networks from IT networks, ensuring reliable transmission of machine data, process parameters, and diagnostic information to the controller. This unit features an EtherNet/IP interface alongside a separate MQTT JSON interface, making it suitable for diverse industrial applications.

It is capable of connecting up to four IO-Link devices, making it versatile for various setups. The operating voltage ranges from 20 to 30 V DC, with a maximum current load of 3.6 A and a current consumption between 300 and 3900 mA. The device is constructed to withstand harsh environments, featuring a robust housing that meets IP67 protection standards.

With a total of 8 configurable inputs and outputs, including 4 digital inputs and 4 digital outputs, it offers short-circuit-proof outputs with a maximum current load of 300 mA per output. The communication interfaces support Ethernet and IO-Link protocols, capable of 10Base-T and 100Base-TX transmission standards at rates of 10 MBit/s and 100 MBit/s, respectively.

Operating under ambient temperatures from -25°C to 60°C and designed for high humidity environments, this device is built to comply with various industry standards. Its EMC approvals include EN 61000-6-2 and EN 61000-6-4, ensuring reliability in electromagnetic compatibility.
