Description
Active MatureRoHS Compliant

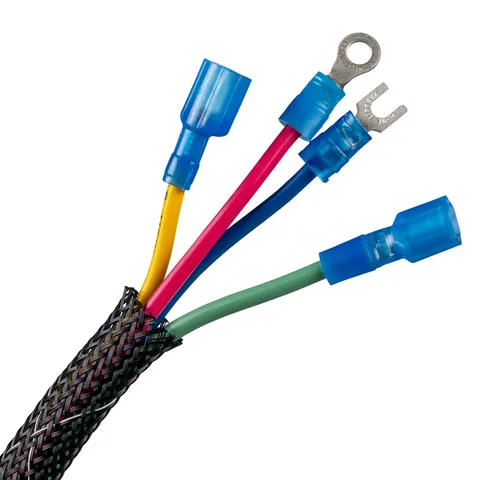

The SE25P-TR0 Braided Sleeving provides continuous abrasion resistance for wires, cables, and tubing. The lightweight, durable protection is highly flexible, and the open weave will not trap heat or humidity. Complaint with U.S. and European passenger rail standards. Temperature range: -94°F – 257°F (-70°C – 125°C). Polyethylene Terephthalate. Nominal Diameter: 0.25" (6.4 mm), 200' (61 m) long. Color Black. 1 per package.- Country of Origin
- MX
- Part Number
- SE25P-TR0
- Tariff Code
- 5911900080
- EAN
- 39131602
- UPC
- 074983202379
- UNSPSC
- 39131602
- ETIM
- Group Code : EG000003
- Group Description : Protective hose systems
- Class Description : Braided hose
- Class Code : EC001182
- Version : 7
Payment methods:
- Best offer from:
Trusted Automa.Net Supplier- Availability:
- 3 pcs.In-StockUpdated at: 22-11-2024
- Warranty:
- 12 months
- Estimated Delivery:
- On Request
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
Shipping Information
Secure Payment Process
Return & Refund Policies
Shipping Policies
Warranty Policies
Specifications
- Product Segment
- IEI
- Application
- Provides Continuous Abrasion Protection for Wires, Cables, Hoses, and Tubing; Highly Flexible Open Weave will not Trap Heat or Humidity; Allows for Use with Irregular Shapes
- Material
- Polyethylene Terephthalate (PET)
- Flammability Rating
- UL94V-0
- Color
- Black
- Resistance Properties
- Abrasion-Resistant
- Standards Met
- CSA Certified, Compliant with U.S. and European passenger rail standards EN-45545, UL Recognized E116868; RoHS Compliant
- Maximum Diameter (In.)
- 0.375
- Maximum Diameter (mm)
- 9.5
- Minimum Operating Temperature (°C)
- -70
- Maximum Operating Temperature (°C)
- 125
- Maximum Operating Temperature (°F)
- 257
- Minimum Operating Temperature (°F)
- -94
- Nominal Diameter (In.)
- 0.25
- Nominal Diameter (mm)
- 6.4
- Overall Length (ft.)
- 200
- Overall Length (m)
- 61
- Product Type
- Braided Expandable Sleeving
- Minimum Bundle Diameter (In.)
- 0.125
- Maximum Bundle Diameter (In.)
- 0.375
- Minimum Bundle Diameter (mm)
- 3.2
- Maximum Bundle Diameter (mm)
- 9.5
Packaging Details
- UPC
- 07498320237
- GTIN Package
- 00074983202379
- Standard Package Volume Ft3
- 0.0877
- Standard Package Weight Pounds
- 1.0500
- Std Package Height In
- 3.4
- Std Package Height MM
- 86.36
- Std Package Length In
- 6
- Std Package Length MM
- 152.4
- Std Package Width In
- 5.95
- Std Package Width MM
- 151.13
- Std. Pkg. UOM
- Roll
- UOM EA PK
- EA
- Std. Pkg. Qty.
- 1
- GTIN Carton
- 50074983202374
- Standard Carton Volume Ft3
- 0.3507
- Standard Carton Weight Pounds
- 4.2000
- Std Carton Height In
- 7.4
- Std Carton Height MM
- 187.96
- Std Carton Length In
- 13.7
- Std Carton Length MM
- 347.98
- Std Carton Width In
- 6.85
- Std Carton Width MM
- 173.99
- Std Ctn Qty
- 4
- Min. Order UOM
- Roll
- Country of Origin 2Digit
- MX
- RoHS Compliant
- Compliant
- EAN
- 00074983202379
- California Pro65 Cancer
- No
- ARRA Compliant
- Y
- Mercury Content Indicator
- No
- Lead Content Indicator
- N
- Restricted Use of Hazardous Substances
- N
- Hazardous Material Flag
- N
- Min Order Qty
- 1
- Pallet Quantity
- 560
- Pallet Volume
- 49.104330
- Pallet Weight
- 588.0000
