170ADM35010
1 / 2
Description
Active Mature

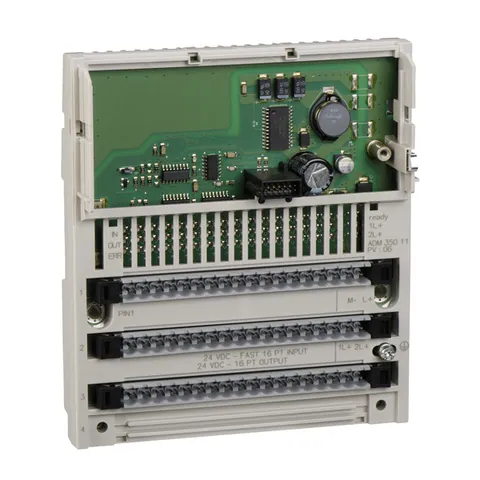

This product is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This discrete I/O module has 1 group of 16 inputs and 2 groups of 8 solid state outputs with sink (positive) discrete logic. It is an I/O module with a rated supply voltage of 24V DC, an input/output voltage of 24V DC, a current consumption of 250mA at 24V DC and a power dissipation of 8W. Its dimensions are 125mm (width) x 47.5mm (depth) x 141.5mm (height) and weighs 0.2kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, CSA and UL. Momentum is a flexible, modular family of fundamental components that easily snap together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.- Country of Origin
- ID
- Part Number
- 170ADM35010
- Tariff Code
- 85389099
- EAN
- 3595861000261
- UNSPSC
- 32151601
€58.99
net€65.55
Shipping from:
€100.00
1
Payment methods:
- Best offer from:
Trusted Automa.Net Supplier- Availability:
- 2 pcs.In-StockUpdated at: 20-11-2024
- Warranty:
- 6 months
- Estimated Delivery:
- 25-29 November to United Kingdom
- Condition:
- Used
Used - A previously used item with possible signs of cosmetic wear. It is fully operational and functions as intended, though the original packaging may be missing.
Shipping Information
Secure Payment Process
Return & Refund Policies
Shipping Policies
Warranty Policies
Environment
- Product Certifications
- UL || CSA
- Ambient Air Temperature For Operation
- 0-60 °C
- Resistance To Electromagnetic Fields
- 10 V/m 80...1000 MHz IEC 801-3
- Ambient Air Temperature For Storage
- -40-85 °C
- Relative Humidity
- 95-95 % without condensation
- Resistance To Electrostatic Discharge
- 4 kV contact IEC 801-2 || 8 kV on air IEC 801-2
- Operating Altitude
- <= 16404.2 ft (5000 m)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1403005EN
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1403005EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Power Dissipation
- 6 W || <= 8 W
- Height
- 141.5 mm
- Fault Type
- overload on output
- Terminals Description Plc N°2
- (10)OUT_DIS#10 || (6)OUT_DIS#6 || (8)OUT_DIS#8 || (1)OUT_DIS#1 || (11)OUT_DIS#11 || (4)OUT_DIS#4 || (5)OUT_DIS#5 || (15)OUT_DIS#15 || (2L+)PW_POS || TB_1 || (7)OUT_DIS#7 || (2)OUT_DIS#2 || (14)OUT_DIS#14 || (9)OUT_DIS#9 || (13)OUT_DIS#13 || (3)OUT_DIS#3 || (1L+)PW_POS || (12)OUT_DIS#12
- Terminals Description Plc N°1
- (L+)PW_POS || (8)IN_DIS#8 || (6)IN_DIS#6 || (5)IN_DIS#5 || TB || (2)IN_DIS#2 || (12)IN_DIS#12 || (M-)PW_NEG || (15)IN_DIS#15 || (13)IN_DIS#13 || (10)IN_DIS#10 || (3)IN_DIS#3 || (9)IN_DIS#9 || (7)IN_DIS#7 || (1)IN_DIS#1 || (11)IN_DIS#11 || (14)IN_DIS#14 || (16)IN_DIS#16 || (4)IN_DIS#4
- Maximum Voltage Drop
- <0.5 V 0.5 A at state 1 output circuit
- Isolation Between Channels And Bus
- 500 V AC
- Current Consumption
- 250 mA 24 V DC
- Current State 1 Guaranteed
- >= 2.5 mA
- Marking
- CE
- Current State 0 Guaranteed
- <= 1.2 mA
- Input Voltage Limits
- 3...30 V
- Response Time
- < 0.1 ms from state 0 to state 1 on output || < 0.1 ms from state 1 to state 0 on output || 2.2 ms from state 0 to state 1 on input || 3.3 ms from state 1 to state 0 on input
- Net Weight
- 0.2 kg
- Voltage State 0 Guaranteed
- -3...5 V
- Maximum Leakage Current
- 1 mA 24 V output circuit)
- Voltage State 1 Guaranteed
- 11...30 V
- Input Resistance
- 4 kOhm
- Local Signalling
- for channel status 16 LEDs
- Peak Output Current
- 5 A
- Width
- 125 mm
- Depth
- 47.5 mm
- Discrete Output Current
- 4 A per group || 8 A per module || 0.5 A per point
- [Us] Rated Supply Voltage
- 24 V DC
Specifications
- Discrete Output Type
- solid state switch
- Group Of Channels
- 2 groups of 8 outputs || 1 group of 16 inputs
- Range Of Product
- Modicon Momentum automation platform
- Discrete Output Logic
- positive
- Discrete Input Voltage
- 24 V DC
- Product Or Component Type
- discrete solid state I/O base DC
- Discrete Output Voltage
- <= 30 V DC || 24 V DC
- Discrete Output Number
- 16
- Discrete Input Logic
- positive
- Discrete Input Number
- 16 IEC 1131-2 Type 1
- Protective Treatment
- TC
