Schneider Electric BCH2HF0733CA5C

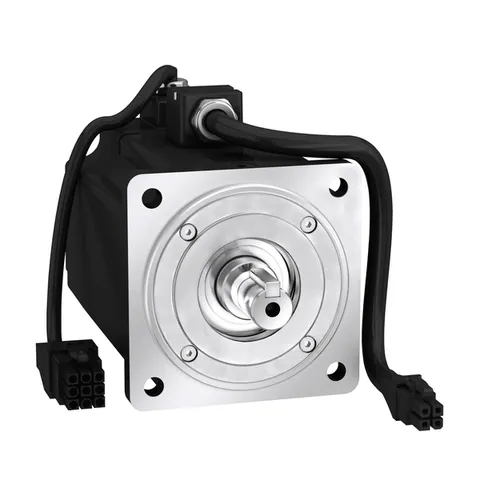

servo motor BCH, Lexium 28, 80mm, 750W, 1,54kg.cm², with oil seal, with key, leads connection
1 / 2
Manufacturer catalogue image
Product Description
Lifecycle Status:
The Schneider Electric Lexium 28 servo motor is part of the Lexium range, an offer of motion servo drives for machines from 0.05 to 4.5kW. This brushless servo motor offers a high moment of inertia with a maximum mechanical speed of 5000RPM and IP65 parallel keyed shaft without holding brake.
It is equipped with a 20bit single-turn absolute encoder, optimized for speed of rotation (3000RPM). It is suitable for a wide variety of applications due to the different levels of motor inertia offered. The servo motor has a rated supply voltage of 220V, a continuous stall current of 4.01A and a continuous power of 750W.
The shaft dimensions are 19mm (Diameter) x 35mm (Length). It is furnished with free lead for electrical connection. It is an IP50 (IM V3) and IP65 (IM B5, IM V1) rated product. Its dimensions are 138mm (Length) x 80mm (Width), centring collar dimensions are 4mm (Depth) x 70mm (Diameter) with 90mm circle diameter of the mounting hole.
It weighs 2.9kg. This product is compatible with Lexium 28 and Lexium 26D servo drives. It supports Asian standard 80mm flange mount with a natural convection cooling system. The Lexium 28 and Lexium BCH2 servo bundles are cost effective, energy efficient and embedded safety.
Send Inquiry
Payment methods:
Offer details
- Best offer from:
Trusted supplier — Romania, member since 2023, 1–4 employees- Availability:
- 1 pc.On RequestUpdated at: 22-08-2026
- Condition:
- New Surplus
New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Schneider Electric
- Maximum Permanent Current
- 4.29 A
- Continuous Power
- 750 W
- Maximum Mechanical Speed
- 5000 rpm
- Product Compatibility
- LXM26D servo drive 0.75 kW, 220 V, single phase || LXM26D servo drive 0.75 kW, 220 V, three phase || LXM28... servo drive 0.75 kW, 220 V, single phase || LXM28... servo drive 0.75 kW, 220 V, three phase || LXM28... servo drive 0.75 kW, 110 V, single phase
- Stator Electrical Time Constant
- 4.07 ms 20 °C
- Maximum Radial Force Fr
- 332 N 3000 rpm
