Schneider Electric LUCA18BL
TeSys Ultra Standard Control Unit, 4.5A to 18A, 3P motors, thermal magnetic protection, class 10, coil 24VDC
1 / 1

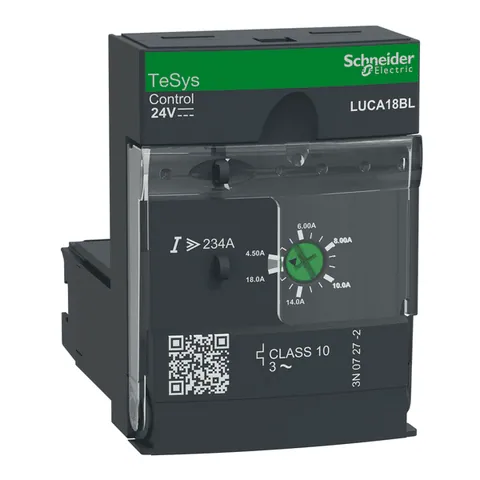

Manufacturer catalogue image
Product Description
Lifecycle Status:
The TeSys Ultra standard control unit is designed to be inserted in power bases LUB32, LUB32, LUB38 to create a TeSys U starter controller for 3-phase motor applications up to 7.5kW@400V. This unit provides comprehensive protection for motors with a rated current of 4.5A to 18A (adjustable), overload tripping class 10, short circuit at 13 times the maximum current, overcurrent at 14.2 times the rated current, phase loss, and insulation fault (protection of equipment only). It is compatible with a 24V DC voltage for control of the starter through the control terminals A1/A2 located in the power base.
This product is certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), and it complies with Green Premium standards (RoHS/REACh).
Send Inquiry
Payment methods:
Offer details
- Best offer from:
- Trusted supplier — United Kingdom, member since 2021
- Availability:
- 1 pc.In-StockUpdated at: 31-10-2025
- Condition:

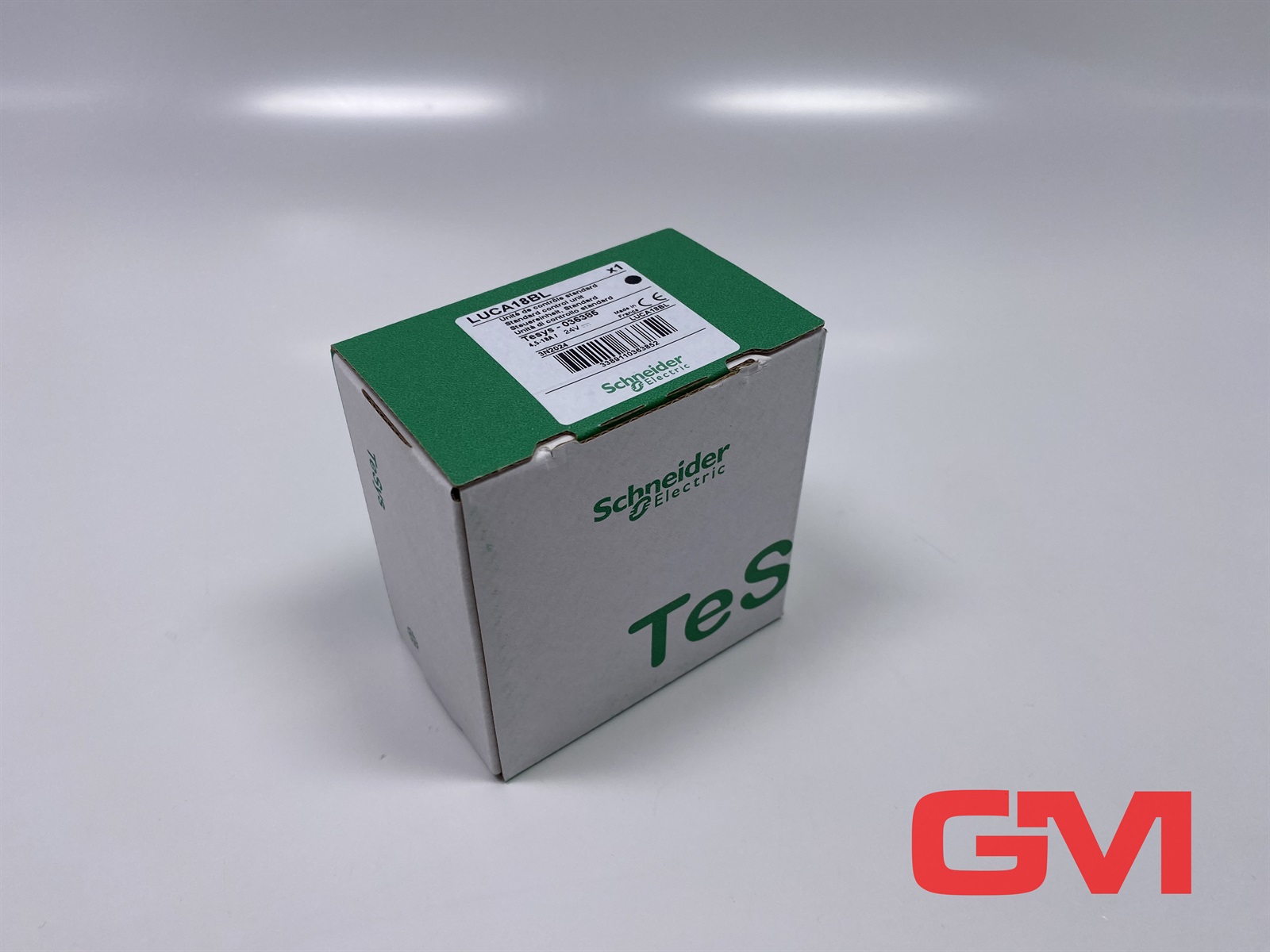

- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Schneider Electric
- Ambient Air Temperature For Operation
- -25-70 °C
- Resistance To Radiated Fields
- 10 V/m 3 IEC 61000-4-3
- Shock Resistance
- 10 gn power poles open IEC 60068-2-27 || 15 gn power poles closed IEC 60068-2-27
- Vibration Resistance
- 2 gn 5-300 Hz power poles open IEC 60068-2-6 || 4 gn 5-300 Hz power poles closed IEC 60068-2-6
- Immunity To Microbreaks
- 3 ms
- Immunity To Voltage Dips
- 70 % / 500 ms IEC 61000-4-11
