Schneider Electric LUCA18FU
Standard control unit, TeSys Ultra, 4.5A to 18A, class 10, 110 to 220VDC/AC
1 / 1

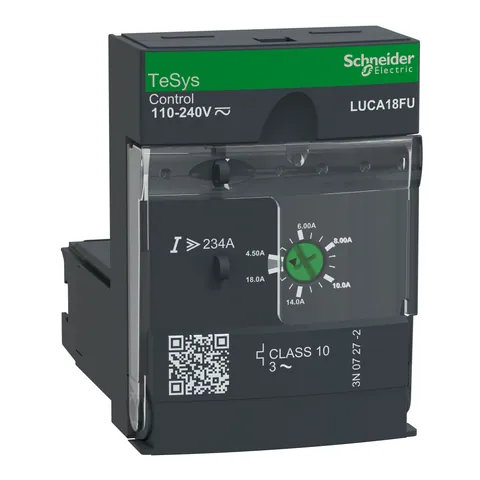

Manufacturer catalogue image
Product Description
Lifecycle Status:
TeSys U standard control unit to be inserted in power bases LUB32, LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 7.5kW@400V. It provides full protection to motors with a rated current Ir 4.5-18A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). To be used with a 110-240V AC / 110-220V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Send Inquiry
Payment methods:
Offer details
- Best offer from:
- Trusted supplier — United Kingdom, member since 2021
- Availability:
- 9 pcs.In-StockUpdated at: 31-10-2025
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Schneider Electric
- Ambient Air Temperature For Operation
- -25-70 °C
- Resistance To Radiated Fields
- 10 V/m 3 IEC 61000-4-3
- Non-Dissipating Shock Wave
- 1 kV serial mode IEC 60947-6-2 || 2 kV common mode IEC 60947-6-2
- Shock Resistance
- 10 gn power poles open IEC 60068-2-27 || 15 gn power poles closed IEC 60068-2-27
- Vibration Resistance
- 2 gn 5-300 Hz power poles open IEC 60068-2-6 || 4 gn 5-300 Hz power poles closed IEC 60068-2-6
- Immunity To Microbreaks
- 3 ms
