Schneider Electric
LULC031
1 / 1
Description
Active Mature

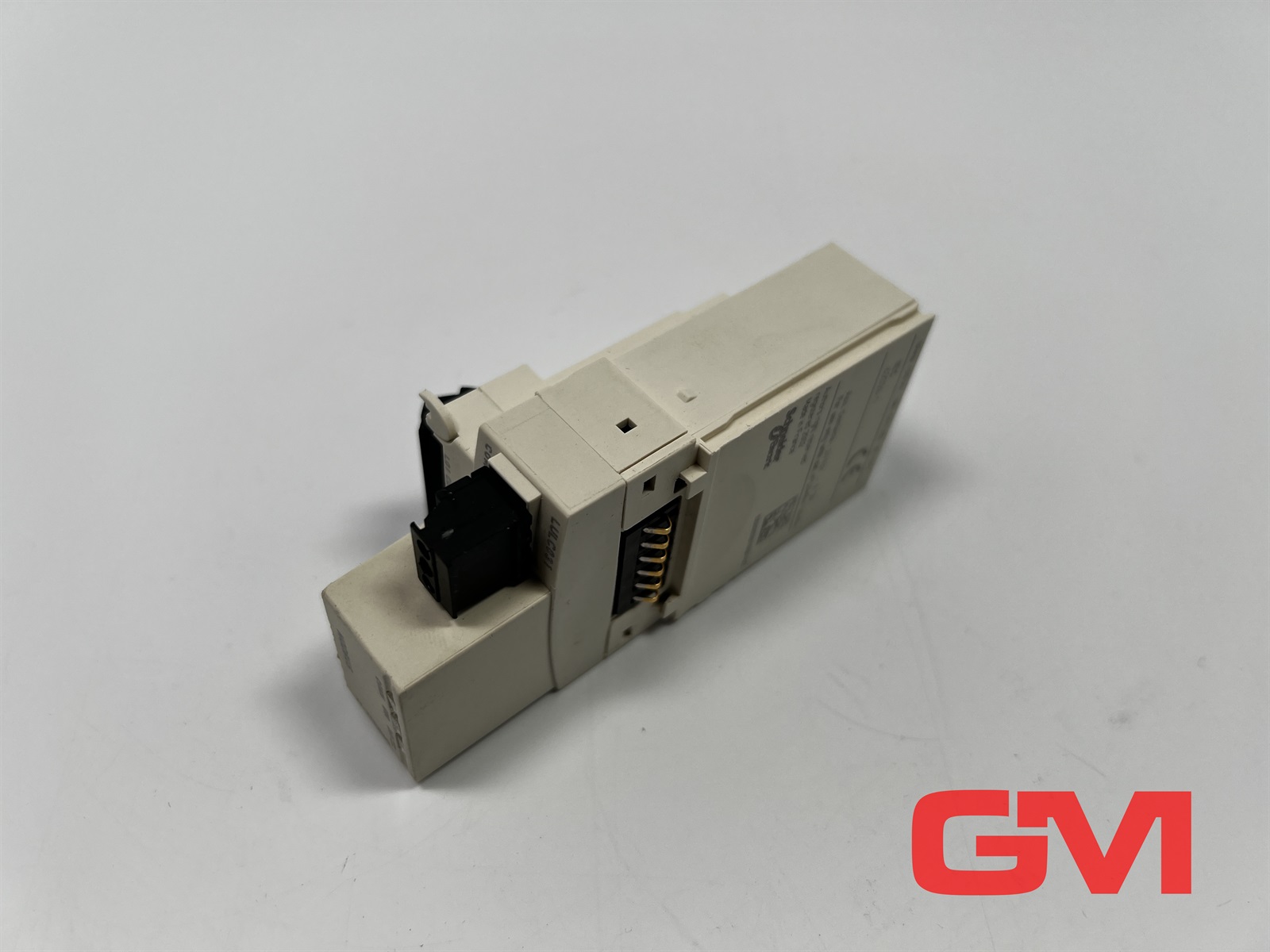

TeSys U communication module for Modbus, to be inserted in advanced power bases LUB120, LUB320, LUB380 equipped with a BL type (24V DC) LUC control unit. It provides a RJ45 connector for connection to a Modbus network, a plug-in terminal block for the connection to an external power supply 24V DC, in addition with 1 x logic output 24V DC (select LULC033 to have 2 additional 24V DC logic inputs). On front side, a 3-point plug-in terminal block is provided for the local control of the starter controller, to be associated with a control terminal block LU9BN11C for a LUB base or LU9MRC for a LU2B base. It displays 3 LEDs indicating 24V voltage presence (24V=) and communication status (COMM, ERR). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).- Country of Origin
- FR
- Part Number
- LULC031
- Tariff Code
- 8517620090
- EAN
- 32151705
- UNSPSC
- 32151705
€96.03
net€99.00
Shipping from:
€19.00
1
Payment methods:
- Best offer from:
Trusted Automa.Net Supplier- Availability:
- 2 pcs.In-StockUpdated at: 21-11-2024
- Warranty:
- 12 months
- Estimated Delivery:
- 25-26 November to United Kingdom
- Condition:
- Used
Used - A previously used item with possible signs of cosmetic wear. It is fully operational and functions as intended, though the original packaging may be missing.
Shipping Information
Secure Payment Process
Return & Refund Policies
Shipping Policies
Warranty Policies
Environment
- Ambient Air Temperature For Operation
- -25-55 °C
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Not compliant
Complementary
- Addressing
- 0...31
- Output Current
- <= 500 mA
- Number Of Outputs
- 2 dedicated to starter-controller coil operation || 1
- Protection Type
- gG fuse 1 A
- Response Time
- 10 ms +/- 30 % change to state 0 || 10 ms +/- 30 % change to state 1
- Cable Connector Type
- RJ45 front panel
- Logic Input
- positive 24 V DC - 7 mA
- Connections - Terminals
- screw clamp terminals 1 0.14-1 mm²flexible without cable end || screw clamp terminals 1 0.14-1 mm²rigid without cable end || screw clamp terminals 1 0.25-0.5 mm²flexible with cable end || screw clamp terminals 1 0.25-1 mm²flexible with cable end || screw clamp terminals 2 0.14-0.5 mm²rigid without cable end || screw clamp terminals 2 0.14-0.75 mm²flexible without cable end || screw clamp terminals 2 0.25-0.34 mm²flexible with cable end || screw clamp terminals 2 0.5-0.5 mm²flexible with cable end
- Net Weight
- 0.08 kg
- Input Type
- resistive
- Mounting Location
- front side
- Function Available
- Modbus communication module
- [Us] Rated Supply Voltage
- 24 V DC
- Communication Port Protocol
- Modbus RTU
- Mounting Mode
- plug-in
- Physical Interface
- RS485 multidrop
- Switching Current Capacity
- 0.5 mA 24 V
- Bus Type
- Modbus
- Return Time
- 30 ms
- Local Signalling
- 3 LEDs front panel
- Connection Pitch
- 3.81 mm
- Transmission Rate
- 19200 bit/s
- Tightening Torque
- 0.2-0.25 N.m 2.5 mm
Specifications
- Range Compatibility
- TeSys TeSys U LUB non reversing power base || TeSys TeSys U LU2B reversing power base
- Product Or Component Type
- communication module
- Range
- TeSys
- Product Compatibility
- LUCD || LUCA || LUCB || LUCL || LUCM || LUCC
- Device Application
- communication
- Device Short Name
- LUL
