Schneider Electric
QO324L125G
1 / 5
Descrizione
Attivo maturo

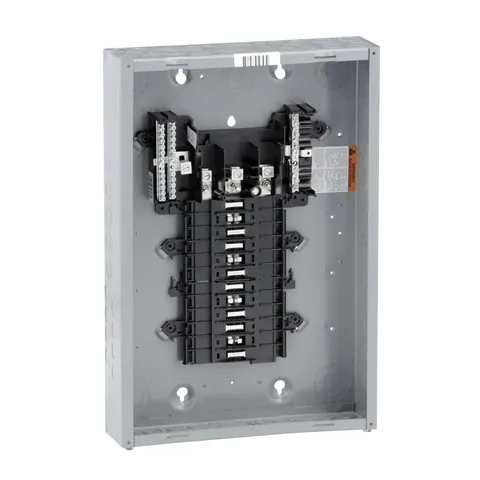

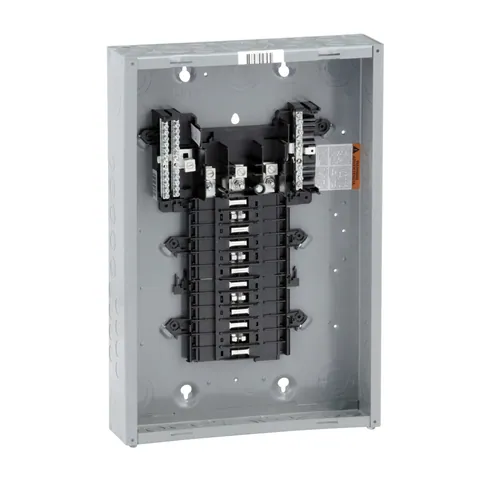

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 24 spaces and 24 circuits. This system provides 125A fixed main lugs in a NEMA 1 enclosure. It also includes a ground bar, and is UL rated.- Country of Origin
- US
- Part Number
- QO324L125G
- Tariff Code
- 8537109150
- EAN
- 39121101
- UPC
- 785901295433
- UNSPSC
- 39121101
- Ottenete termini di pagamento fino a 90 giorni da 500+ fornitori.
- Sconti sulla rivendita fino al 40%!
Invia una richiesta di prezzo
1
Metodi di pagamento:
Environment
- Product Certifications
- UL Listed
- Nema Degree Of Protection
- NEMA 1 indoor
- Ambient Air Temperature For Operation
- -5 °C || 40 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2212001
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Circularity Profile
- N/A
- Eu Rohs Directive
- Compliant
Complementary
- Height
- 531 mm
- Tightening Torque
- main lugs 50 lb.in, AWG 6...AWG 2/0, aluminium/copper || Cover 20 lb.in
- [Ue] Rated Operational Voltage
- 208Y/120 V AC || 240/120 V delta AC || 240 V delta AC
- Electrical Connection
- lugs
- Number Of Circuits
- 24
- Number Of Spaces
- 24
- Phase
- 3 phase
- Short-Circuit Current
- 65 kA
- Number Of Tandem Circuit Breakers
- 0
- Material
- tin plated copper: busbar
- Surface Finish
- baked enamel Gray
- Line Rated Current
- 125 A
- Enclosure Material
- welded sheet steel
- Awg Gauge
- AWG 6...AWG 2/0 aluminium/copper
- Width
- 362 mm
- Wiring Configuration
- 3-wire || 4-wire
- Load Center Type
- Fixed Mains (lugs)
- Device Composition
- grounding bar included (not installed)
- Box Number
- 7
Specifications
- Range Of Product
- QO
- Product Or Component Type
- Load Center
- Cover Type
- order separately
