Schneider Electric SH31001P02F2000
servo motor SH3 100 2.94Nm, multi, brake, 90° conn. IP54/IP65, 6k RPM
1 / 1

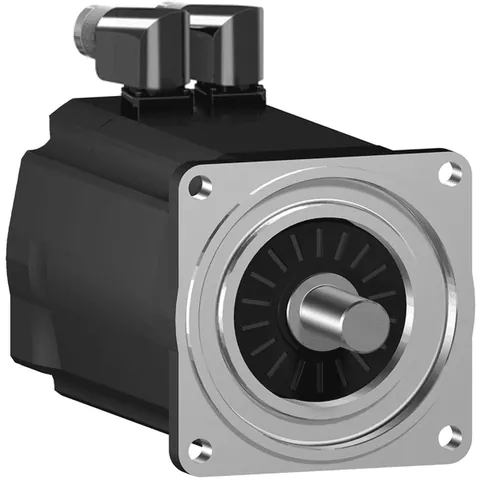

Manufacturer catalogue image
Product Description
Lifecycle Status:
The servo motor SH3 100 is a key component of the Lexium 52 & Motors range tailored for PacDrive 3 applications. With a maximum mechanical speed of 6000 RPM, this 4-pole motor features a smooth shaft end equipped with a holding brake. It incorporates an absolute multi-turn SinCos Hiperface® encoder providing a speed feedback resolution of 128 periods.
This motor operates within a rated supply voltage range of 115V to 480V and has a continuous stall current of 3.5 A, delivering a continuous power output of 1190 W. The shaft specifications include a diameter of 19 mm and a length of 40 mm, complemented by rotatable right-angled connectors for electrical connections. The device is rated IP54/IP65, ensuring protection in various environments.
Measuring 199.5 mm in length and weighing 4.8 kg, the motor features a centering collar with a depth of 3.5 mm and a diameter of 95 mm, with mounting holes sized at 9.0 mm in diameter, arranged in a circle of 115 mm. It is compatible with the PacDrive 3 system, which is suitable for motion-centric machinery.
Send Inquiry
Payment methods:
Offer details
- Best offer from:
Trusted supplier — Romania, member since 2023, 1–4 employees- Availability:
- 1 pc.On RequestUpdated at: 22-08-2026
- Condition:
- New Surplus
New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Schneider Electric
- Continuous Power
- 1190 W
- Maximum Mechanical Speed
- 6000 rpm
- Holding Torque
- 9 N.m
- Maximum Radial Force Fr
- 900 N 1000 rpm || 720 N 2000 rpm || 630 N 3000 rpm || 570 N 4000 rpm || 530 N 5000 rpm
- Encoder Type
- absolute multiturn SinCos Hiperface
- Mounting Support
- international standard flange
