Schneider Electric TM241C40T

Name: logic controller, Modicon M241, 40 IO, transistor, PNP
Brand: Schneider Electric
SKU: TM241C40T

logic controller, Modicon M241, 40 IO, transistor, PNP

1 / 2

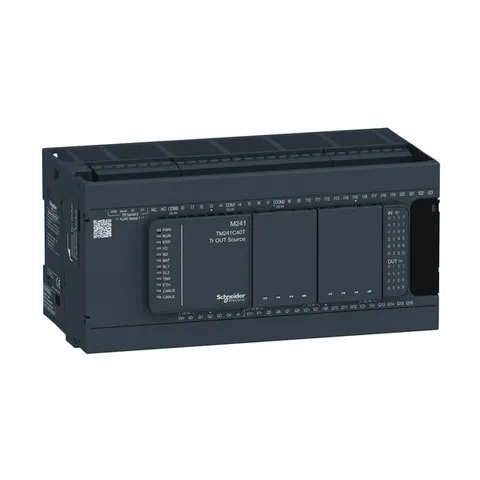

Manufacturer catalogue image

Product Description

Lifecycle Status:

This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This logic controller provides 24 discrete, 8 fast inputs, 16 transistor, 4 fast outputs with PNP transistor output. It is a Modicon logic controller with a rated supply/output voltage of 24V DC, an output current of 0.5A for transistor output, 0.1A for fast output current with sink or source input logic positive output logic. This product enables to build application intuitively as never before due to an organised screen design. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link 1 with RJ45 connector and RS232/RS485 interface and non isolated serial link 2 with removable screw terminal block connector and RS485 interface. It is a Modicon M241 controller with 8MB for program, 64MB for system memory RAM, 128MB built-in flash memory for backup of user programs and a SD card memory capacity of 16GB. It is an IP20 rated product. Its dimensions are 190mm (Width) x 95mm (Depth) x 90mm (Height). It weighs 0.62kg. The Modicon M241 logic controllers are designed for high-performance compact machines incorporating speed and position control functions. This product is certified by CE, IACS E10, CSA, RCM and CULus. It meets ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604 and UL 508 standards. It supports DIN rail mount. Achieve benchmark performance while...

Need more information?

Call us at:+48 17 778 34 19

Compare offers

Payment methods:

Offer details

Offer from:: Trusted supplier — Romania, member since 2023, 1–4 employees
Availability:: On requestLead time: 21 days
Warranty:: Not specified
Condition:: New Surplus

New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.

The Seller is responsible for shipping the product and invoicing

Specifications

Brand: Schneider Electric
Product Certifications: RCM || cULus || CE || UKCA || DNV-GL || ABS || LR
Resistance To Conducted Disturbances: 10 V 0.15...80 MHz IEC 61000-4-6 || 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Resistance To Electromagnetic Fields: 10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3
Immunity To Microbreaks: 10 ms
Storage Altitude: 0-3000 m
Standards: ANSI/ISA 12-12-01 || CSA C22.2 No 142 || CSA C22.2 No 213 || IEC 61131-2:2007 || Marine specification (LR, ABS, DNV, GL) || UL 508

Available Offers

(7)

Condition	Availability	Supplier	Warranty
Condition New Surplus	Availability On requestLead time: 21 days	Supplier RomaniaTrusted supplier — member since 2023, 1–4 employees	Warranty Not specified
Condition New Factory Sealed	Availability 3 pcs. In-Stock Updated at: 07-10-2026	Supplier United StatesTrusted supplier — member since 2023	Warranty 12 months
Condition New Factory Sealed	Availability 99 pcs. In-Stock Updated at: 07-10-2026	Supplier NetherlandsTrusted supplier — member since 2021, 100–499 employees	Warranty 24 months
Condition New Factory Sealed	Availability 5 pcs. In-Stock Updated at: 07-10-2026	Supplier PolandTrusted supplier — member since 2023, 50–99 employees	Warranty 24 months
Condition Refurbished	Availability 1 pc. In-Stock Updated at: 07-10-2026	Supplier PolandTrusted supplier — member since 2023, 50–99 employees	Warranty 24 months
Condition New Factory Sealed	Availability On requestLead time to be confirmed	Supplier GermanyTrusted supplier — member since 2024	Warranty Not specified

Offer with manufacturer lead time

Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.

Documents

Data Sheet

Datasheet for Schneider Electric TM241C40T, including specifications and features.

Download Data Sheet

CAD Models

3D CAD model and technical drawings, ready for your design software.

Download CAD Model

Product data updated: 05-10-2026
