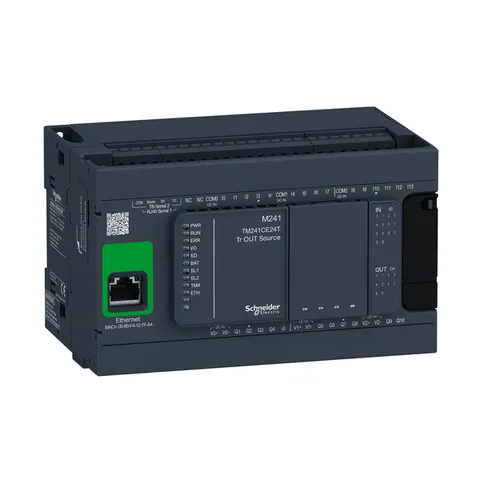

TM241CE24T

Environment

Product Certifications

RCM || cULus || CE || UKCA || DNV-GL || ABS || LR

Resistance To Conducted Disturbances

10 V 0.15...80 MHz IEC 61000-4-6 || 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)

Resistance To Electromagnetic Fields

10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3

Immunity To Microbreaks

10 ms

Storage Altitude

0-3000 m

Standards

ANSI/ISA 12-12-01 || CSA C22.2 No 142 || CSA C22.2 No 213 || IEC 61131-2:2007 || Marine specification (LR, ABS, DNV, GL) || UL 508

Pollution Degree

2

Ambient Air Temperature For Operation

-10-50 °C vertical installation) || -10-55 °C horizontal installation)

Shock Resistance

15 gn 11 ms

Vibration Resistance

3.5 mm 5-8.4 Hz symmetrical rail || 3 gn 8.4-150 Hz symmetrical rail || 3.5 mm 5-8.4 Hz panel mounting || 3 gn 8.4-150 Hz panel mounting

Ambient Air Temperature For Storage

-25-70 °C

Relative Humidity

10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)

Ip Degree Of Protection

IP20 with protective cover in place

Resistance To Electrostatic Discharge

8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2

Resistance To Fast Transients

2 kV IEC 61000-4-4 power lines) || 1 kV IEC 61000-4-4 Ethernet line) || 1 kV IEC 61000-4-4 serial link) || 1 kV IEC 61000-4-4 input) || 1 kV IEC 61000-4-4 transistor output)

Operating Altitude

0...6561.68 ft (0...2000 m)

Electromagnetic Emission

conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011 || conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011 || radiated emissions 40 dBμV/m QP class A30-230 MHz IEC 55011 || conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011 || radiated emissions 47 dBμV/m QP class A230-1000 MHz IEC 55011

Complementary

Discrete Input Logic

sink or source

Data Backed Up

128 MB built-in flash memory backup of user programs

Electrical Connection

removable screw terminal block for inputs and outputs pitch 5.08 mm) || removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm)

Input Impedance

4.7 kOhm input || 2.81 kOhm fast input

Maximum Cable Distance Between Devices

unshielded cable <50 m input || shielded cable <10 m fast input || unshielded cable <50 m output || shielded cable <3 m fast output

Height

90 mm

Discrete Output Logic

positive logic (source)

Discrete Input Voltage

24 V

Inrush Current

50 A

Power Consumption In W

32.6-40.4 W with max number of I/O expansion module)

Discrete Input Voltage Type

DC

Positioning Functions

PTO 4 100 kHz) || PTO 4 transistor output 1 kHz)

Accuracy

+/- 0.1 % 0.02-0.1 kHz fast output || +/- 1 % 0.1-1 kHz fast output

Port Ethernet

10BASE-T/100BASE-TX - 1 copper cable

Maximum Current Per Output Common

2 A Q0...Q3 fast output || 2 A Q4...Q7 output || 1 A Q8...Q9 output

Transmission Rate

1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485 || 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232 || 480 Mbit/s 3-3 m USB || 10/100 Mbit/s Ethernet

Clock Drift

<= 60 s/month 25-25 °C

Battery Type

BR2032 lithium non-rechargeable 4 year(s)

Communication Port Protocol

non isolated serial link Modbus master/slave

Marking

CE

Backup Time

2 years 25 °C

Discrete I/O Number

24

Reset Time

10 ms automatic reset output || 12 s automatic reset fast output

Cycle Time

10 ms 16 EtherNet/IP || 64 ms 64 Modbus TCP

Maximum Number Of I/O Expansion Module

7 (local I/O-Architecture) || 14 (remote I/O-Architecture)

Net Weight

0.53 kg

Application Structure

8 external event tasks || 8 event tasks || 3 cyclic master tasks + 1 freewheeling task || 4 cyclic master tasks

Voltage State 0 Guaranteed

<= 5 V input

Maximum Voltage Drop

<1 V

Configurable Filtering Time

1 µs fast input || 12 ms fast input || 0 ms input || 1 ms input || 4 ms input || 12 ms input

Output Voltage Limits

30 V DC

Memory Capacity

64 MB system memory RAM

Communication Service

FDR || DHCP server via TM4 Ethernet switch network module || DHCP client embedded Ethernet port || SMS notifications || updating firmware || SNMP client/server || programming || NGVL || monitoring || IEC VAR ACCESS || FTP client/server || downloading || SQL client || Modbus TCP client I/O scanner || Ethernet/IP originator I/O scanner embedded Ethernet port || Ethernet/IP target, Modbus TCP server and Modbus TCP slave || send and receive email from the controller based on TCP/UDP library || web server (WebVisu & XWeb system) || OPC UA server || DNS client

Voltage State 1 Guaranteed

>= 15 V input

Supply Voltage Limits

20.4-28.8 V

Integrated Connection Type

non isolated serial link serial 1 RJ45 RS232/RS485 || non isolated serial link serial 2 removable screw terminal block RS485 || USB port mini B USB 2.0 || Ethernet RJ45

Mounting Support

top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit

Control Signal Type

A/B 100 kHz fast input (HSC mode) || pulse/direction 200 kHz fast input (HSC mode) || single phase 200 kHz fast input (HSC mode)

Local Signalling

for PWR 1 LED (green) || for RUN 1 LED (green) || for module error (ERR) 1 LED (red) || for I/O error (I/O) 1 LED (red) || for SD card access (SD) 1 LED (green) || for BAT 1 LED (red) || for SL1 1 LED (green) || for SL2 1 LED (green) || for bus fault on TM4 (TM4) 1 LED (red) || for I/O state 1 LED per channel (green) || for Ethernet port activity 1 LED (green)

Surge Withstand

1 kV power lines (DC) common mode IEC 61000-4-5 || 1 kV shielded cable common mode IEC 61000-4-5 || 0.5 kV power lines (DC) differential mode IEC 61000-4-5 || 1 kV relay output differential mode IEC 61000-4-5 || 1 kV input common mode IEC 61000-4-5 || 1 kV transistor output common mode IEC 61000-4-5

Response Time

50 µs turn-on, I0...I13 input || 50 µs turn-off, I0...I13 input || <= 2 µs turn-on, I0...I7 fast input || <= 2 µs turn-off, I0...I7 fast input || <= 34 µs turn-on, Q0...Q9 output || <= 250 µs turn-off, Q0...Q9 output || <= 2 µs turn-on, Q0...Q3 fast output || <= 2 µs turn-off, Q0...Q3 fast output

Discrete Input Current

5 mA input || 10.7 mA fast input

Maximum Output Frequency

20 kHz fast output (PWM mode) || 100 kHz fast output (PLS mode) || 1 kHz output

Execution Time For 1 Kinstruction

0.3 ms event and periodic task || 0.7 ms other instruction

Realtime Clock

with

Web Services

web server

Width

150 mm

Maximum Number Of Connections

8 Modbus server || 8 SoMachine protocol || 10 web server || 4 FTP server || 16 Ethernet/IP target || 8 Modbus client

Number Of Slave

64 Modbus TCP || 16 EtherNet/IP

Depth

95 mm

Maximum Tungsten Load

<2.4 W

Protection Type

short-circuit protection || short-circuit and overload protection with automatic reset || reverse polarity protection fast output

Maximum Leakage Current

5 µA output

Data Storage Equipment

<= 16 GB SD card optional)

Insulation

between supply and internal logic 500 V AC || non-insulated between supply and ground || between input and internal logic 500 V AC || non-insulated between inputs || between fast input and internal logic 500 V AC || between output and internal logic 500 V AC || non-insulated between outputs || between fast output and internal logic 500 V AC || between output groups 500 V AC

Supply

serial 1)serial link supply 5 V, <200 mA

Counting Input Number

4 fast input (HSC mode) 200 kHz || 14 standard input 1 kHz

Specifications

Discrete Output Type

transistor

Range Of Product

Modicon M241

Discrete Output Number

10 transistor 4 fast output

Product Or Component Type

logic controller

Discrete Output Current

0.5 A transistor output Q0...Q9) || 0.1 A fast output (PTO mode) Q0...Q3)

Discrete Output Voltage

24 V DC transistor output

[Us] Rated Supply Voltage

24 V DC

Discrete Input Number

14 , discrete input 8 fast input IEC 61131-2 Type 1

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP1307080EN

Sustainable Offer Status

Green Premium product

Pvc Free

Yes

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

X

Circularity Profile

ENVEOLI1307080EN

Eu Rohs Directive

Pro-active compliance (Product out of EU RoHS legal scope)
