Schneider Electric TM241C24T

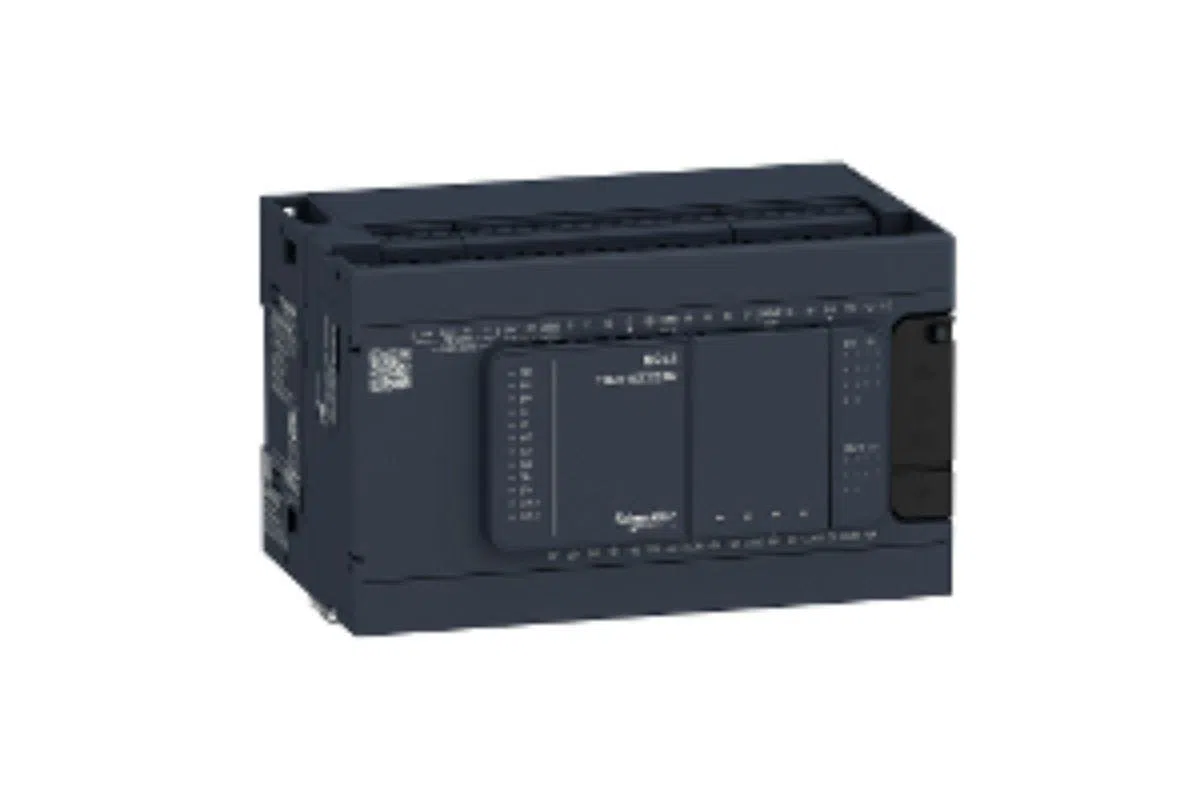

Modicon M241 Logic Controller, 24 IO, Transistor Output
1 / 1
Manufacturer catalogue image
Product Description
Lifecycle Status:
The Modicon M241 Logic Controller is a robust solution for performance-intensive applications. Equipped with 24 input/output (I/O) points, this controller provides a reliable interface for various industrial automation tasks. The transistor output feature enhances the control capabilities, allowing for precise and efficient operation.
The Modicon M241 is designed to support high-speed applications with its 8MB program memory and 64MB system memory RAM. It also features a built-in flash memory of 128MB for user program backup and a SD card memory capacity of 16GB. The controller's compact dimensions (150mm x 95mm x 90mm) and lightweight design (0.53kg) make it suitable for various installation scenarios.
This logic controller is CE, IACS E10, CSA, RCM, and CULus certified, ensuring compliance with industry standards such as ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604, and UL 508. It supports DIN rail mount for easy installation.
The Modicon M241 Logic Controller offers intuitive machine programming with EcoStruxure Machine Expert and ready-to-use applications and function blocks, enabling users to achieve benchmark performance while increasing profitability.
Send Inquiry
Payment methods:
Offer details
- Best offer from:
Trusted supplier — United Kingdom, member since 2023- Availability:
- 5 pcs.In-StockUpdated at: 05-09-2026
- Warranty:
- 12 months
- Condition:
- New Surplus
New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Schneider Electric
- Discrete Input Logic
- sink or source
- Data Backed Up
- 128 MB built-in flash memory backup of user programs
- Electrical Connection
- removable screw terminal block for inputs and outputs pitch 5.08 mm) || removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm)
- Input Impedance
- 4.7 kOhm input || 2.81 kOhm fast input
- Maximum Cable Distance Between Devices
- unshielded cable <50 m input || shielded cable <10 m fast input || unshielded cable <50 m output || shielded cable <3 m fast output
- Discrete Output Logic
- positive logic (source)
