Schneider Electric

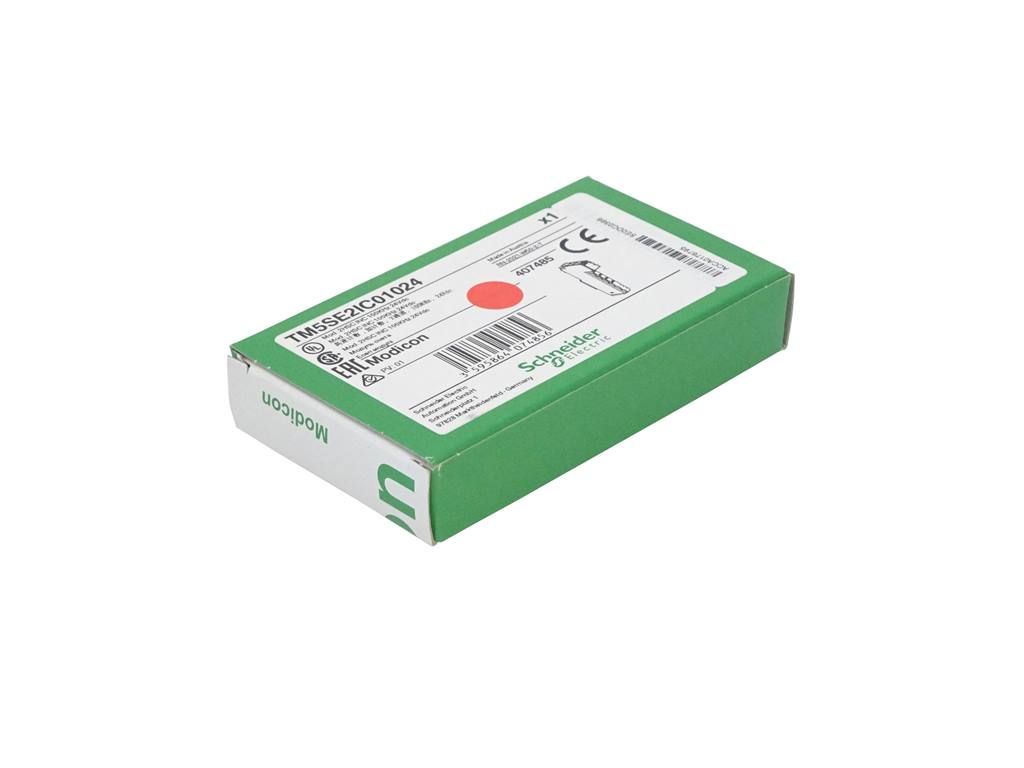

TM5SE2IC01024
1 / 2
Description
Active Mature
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. The counter module provides 2 HSC incremental encoder inputs. Its counting frequency is 100kHz per channel. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an insulation between channel and bus at 500Vrms AC and no insulation between channels. The maximum cycle time is 2ms and counter inputs resolution is 16bit/32bit. It is an IP20 rated product. The housing colour is white. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.- Country of Origin
- AT
- Part Number
- TM5SE2IC01024
- Tariff Code
- 90291000
- EAN
- 3595864074856
- UNSPSC
- 32151703
€249.36
net€277.07
Free Shipping!1
Payment methods:
- Best offer from:
Trusted Automa.Net Supplier- Availability:
- 2 pcs.In-StockUpdated at: 22-11-2024
- Warranty:
- 12 months
- Estimated Delivery:
- 27-29 November to United Kingdom
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
Shipping Information
Secure Payment Process
Return & Refund Policies
Shipping Policies
Warranty Policies
Environment
- Product Certifications
- GOST-R || CSA || C-tick || cULus
- Resistance To Electromagnetic Fields
- 1 V/m 2...2.7 GHz IEC 61000-4-3 || 10 V/m 80...2000 MHz IEC 61000-4-3
- Standards
- UL 508 || CSA C22.2 No 142 || CSA C22.2 No 213 || IEC 61131-2
- Storage Altitude
- 0-3000 m
- Ambient Air Temperature For Operation
- 0-55 °C without derating horizontal installation) || 0-60 °C with derating factor horizontal installation) || 0-50 °C vertical installation)
- Ip Degree Of Protection
- IP20IEC 61131-2
- Vibration Resistance
- 1 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz DIN rail
- Shock Resistance
- 15 gn 11 ms
- Disturbance Radiated/Conducted
- CISPR 11
- Electromagnetic Compatibility
- EN/IEC 61000-4-6
- Pollution Degree
- 2 IEC 60664
- Surge Withstand
- 0.5 kV differential mode IEC 61000-4-5 || 1 kV common mode IEC 61000-4-5
- Ambient Air Temperature For Storage
- -25-70 °C
- Relative Humidity
- 5-95 % without condensation
- Resistance To Electrostatic Discharge
- 4 kV on contact IEC 61000-4-2 || 8 kV in air IEC 61000-4-2
- Resistance To Fast Transients
- 1 kV IEC 61000-4-4 I/O) || 1 kV IEC 61000-4-4 shielded cable) || 2 kV IEC 61000-4-4 power lines)
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1511026EN
- Sustainable Offer Status
- Green Premium product
- Pvc Free
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1511026EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Maximum Cycle Time
- 2 ms
- Discrete Input Voltage
- 24 V DC
- Marking
- CE
- Net Weight
- 0.025 kg
- Counter Inputs Resolution
- 16 bits/32 bits
- Current Consumption
- 2 mA 5 V DC bus || 63 mA 24 V DC input/output
- Input Compatibility
- 2 incremental encoders (24 V)
- Input Resistance
- 18.4 kOhm
- Maximum Power Dissipation In W
- 1.51 W
- Discrete Input Logic
- sink
- Isolation
- 500 Vrms AC insulation between channel and bus
- Discrete Input Current
- 1.3 mA 24 V
- Range Compatibility
- Modicon LMC058 || Modicon M258
- Product Compatibility
- logic controller || motion controller
Specifications
- Range Of Product
- Modicon TM5
- Encoder Type
- 2 incremental encoders
- Counting Frequency
- 100 kHz
- Product Or Component Type
- counter module
- Discrete Input Number
- 2
- Product Specific Application
- period measurement || frequency generator || frequency meter || downcounting || upcounting || axis following with encoder
- Function Of Module
- 2 x 24 V DC auxiliary inputs || 24 V DC encoder power supply
