Schneider Electric TMC2TI2

Name: analogue input cartridge, Modicon M221, 2 temperature inputs, IO extension
Brand: Schneider Electric
SKU: TMC2TI2

analogue input cartridge, Modicon M221, 2 temperature inputs, IO extension

1 / 2

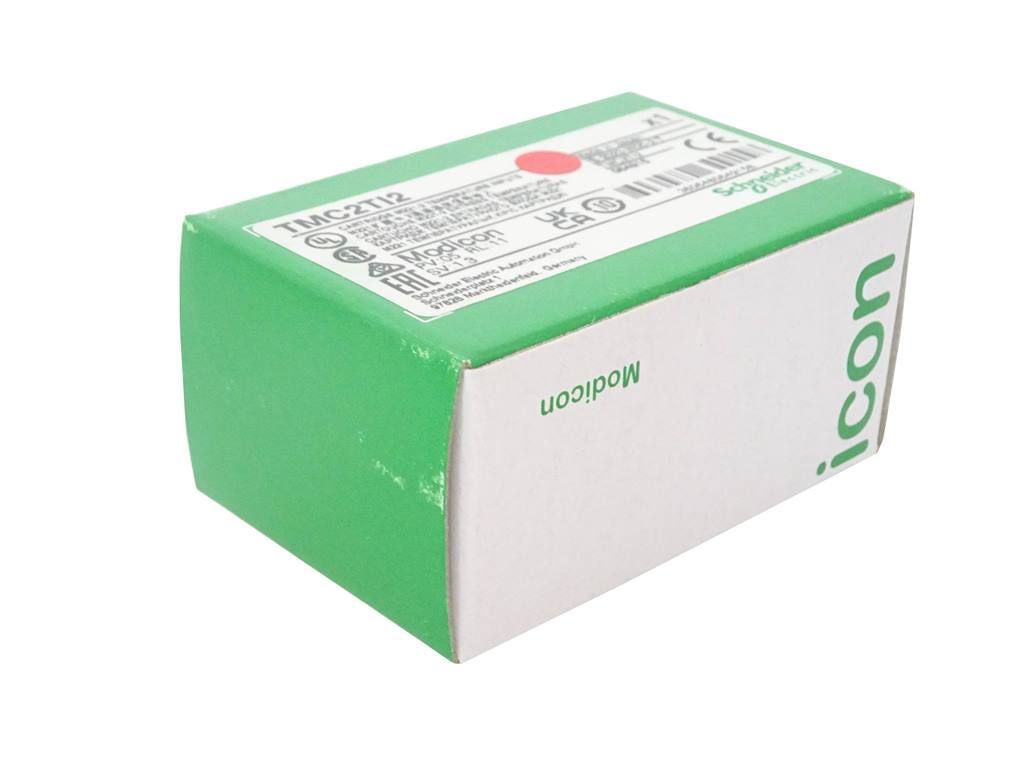

Manufacturer catalogue image

Product Description

Lifecycle Status:

This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This analogue input cartridge provides 2 temperature inputs with 14bit input resolution. This product requires minimal installation and offers tremendous versatility. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is no insulation between analogue input and internal logic. It is furnished with screw terminal for electrical connection. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This cartridge is compatible with Modicon M221C PLC. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks

Send Inquiry

Payment methods:

Offer details

Best offer from:: Trusted supplier — Romania, member since 2023, 1–4 employees
Availability:: 1 pc.
On Request
Updated at: 22-08-2026
Condition:: New Surplus

New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.

The Seller is responsible for shipping the product and invoicing

Specifications

Brand: Schneider Electric
Maximum Cable Distance Between Devices: twisted shielded pairs cable <30 m input
Electrical Connection: 3 x 1.5 mm² 2 screw terminal blocks pitch 3.81 mm for inputs
Input Impedance: >= 1 MOhm
Non-Linearity: +/- 0.01 %FS
Lsb Value: 0.1 °C
Analogue Input Resolution: 14 bits
