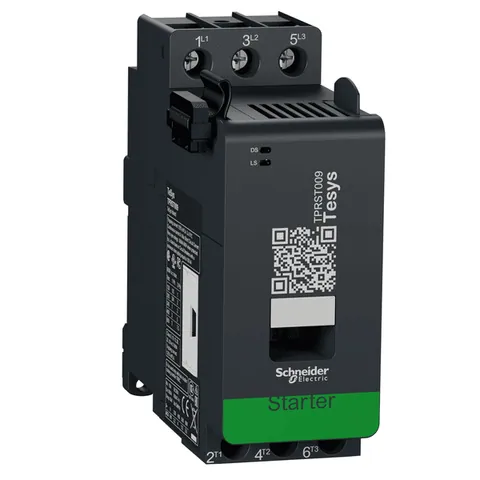

TPRST009

Environment

Ambient Air Temperature For Operation

-10-50 °C without derating || 50-60 °C with current derating

Shock Resistance

15 gn 11 ms) IEC 60068-2-27

Vibration Resistance

1.5 mm peak to peak 3-13 Hz) IEC 60068-2-6 || 1 gn 13-200 Hz) IEC 60068-2-6

Electromagnetic Compatibility

electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 || radiated RF field immunity test, level 3, 10 V/m, conforming to EN/IEC 61000-4-3 || fast transient immunity test, level 4, 4 kV, conforming to EN/IEC 61000-4-4 || surge immunity test (differential mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5 || surge immunity test (common mode), level 4, 4 kV, conforming to EN/IEC 61000-4-5 || conducted RF disturbance immunity test, 20 V, conforming to EN/IEC 61000-4-6

Pollution Degree

2

Ambient Air Temperature For Storage

-25-70 °C

Protective Treatment

TC

Relative Humidity

5-95 %

Ip Degree Of Protection

IP20

Operating Altitude

0...6561.68 ft (0...2000 m) without derating

Fire Resistance

960 °C UL 94 || 850 °C IEC 60695-2-1 || 650 °C IEC 60695-2-12

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP1904009EN

Sustainable Offer Status

Green Premium product

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

Product out of China RoHS scope. Substance declaration for your information.

Circularity Profile

ENVEOLI1904009EN

Eu Rohs Directive

Compliant with Exemptions

Halogen Content Performance

Halogen free plastic parts product

Complementary

Mounting Mode

horizontal and vertical 35 mm symmetrical DIN rail)

Height

116 mm

Product Certifications

EAC || CSA || CCC || UL

Safety Reliability Level

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Standards

EN/IEC 60947-1 || EN/IEC 60947-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1

Connections - Terminals

screw-clamp terminals 1 1-4 mm² AWG 16...AWG 12)rigid || screw-clamp terminals 2 1-4 mm² AWG 16...AWG 12)rigid || screw-clamp terminals 1 1.5-4 mm² AWG 16...AWG 12)flexible without cable end || screw-clamp terminals 2 1.5-4 mm² AWG 16...AWG 12)flexible without cable end || screw-clamp terminals 1 1-4 mm² AWG 16...AWG 12)flexible with cable end || screw-clamp terminals 2 1-2.5 mm² AWG 16...AWG 14)flexible with cable end

Net Weight

0.656 kg

Metering Type

time device ON || time device switch ON || number of faults || number of switching cycles || number of device power cycles || average current Iavg || average voltage Vavg || max current Imax || max voltage Vmax || active and reactive power with voltage module || active and reactive energy with voltage module || true power factor with voltage module

Maximum Operating Rate

3600 cyc/mn AC-3

Local Signalling

for DS (device status) 1 LED (green/red) || for LS (load status) 1 LED (green/red)

Electrical Durability

2 Mcycles 9 A AC-3 440 V || 1.2 Mcycles 15 A AC-1 440 V

Mechanical Durability

30 Mcycles

Operating Time

< 100 ms closing || < 30 ms opening

Width

45 mm

Depth

115 mm

Tightening Torque

1.7-1.7 N.m flat Ø 6 mm || 1.7-1.7 N.m Philips No 2

Protection Type

thermal overload protection || motor overheat || overcurrent || undercurrent || jam || long start || stall || rapid cycle lockout || phase sequence || rapid restart lockout || phase reversal || phase loss || phase unbalance || ground current

Specifications

Current Consumption

160 mA contactor sealed || 160 mA contactor closing

Power Dissipation In W

3.5 W at Ie AC-3

Power Dissipation Per Pole

0.2 W AC-3 - Ith 9 A || 0.56 W AC-1 - Ith 15 A

Average Impedance

2.5 mOhm - Ith 15 A 50 Hz

Reset

remotely or automatically

[Ith] Conventional Free Air Thermal Current

15 A (at 50 °C)

[Uc] Control Circuit Voltage

24 V DC supplied by the bus coupler

Rated Breaking Capacity

250 A at 440 V conforming to IEC 60947

Product Or Component Type

motor starter

Irms Rated Making Capacity

250 A at 440 V conforming to IEC 60947

Product Name

TeSys island

Thermal Overload Class

class 5…30

[Uimp] Rated Impulse Withstand Voltage

6 kV IEC 60947-1

Range

TeSys

Device Presentation

direct starter connected to an automation controller through a bus coupler || operational only when connected to a bus coupler

Motor Starter Type

direct on line

Utilisation Category

AC-1 || AC-2 || AC-3 || AC-4

Function Available

upstream voltage presence detection || electrical line and load protection || power and energy monitoring when connected with TPRVM voltage module

[Ie] Rated Operational Current

9 A (at <50 °C) at <= 440 V AC-3 || 15 A (at <50 °C) at <= 440 V AC-1

Overvoltage Category

III

Thermal Protection Adjustment Range

0.18-9 A

Product Compatibility

TPRBC bus coupler || TPRVM voltage interface module

[Ue] Rated Operational Voltage

<= 690 V AC 47...63 Hz

Maximum Horse Power Rating

0.33 hp at 120 V AC 60 Hz for 1 phase motors || 1 hp at 240 V AC 60 Hz for 1 phase motors || 2 hp at 208 V AC 60 Hz for 3 phase motors || 2 hp at 240 V AC 60 Hz for 3 phase motors || 5 hp at 480 V AC 60 Hz for 3 phase motors || 7.5 hp at 600 V AC 60 Hz for 3 phase motors

Motor Power Kw

2.2 kW at 230 V 50 Hz (AC-3) || 4 kW at 380...415 V 50 Hz (AC-3) || 4 kW at 440 V 50 Hz (AC-3) || 5.5 kW at 500 V 50 Hz (AC-3) || 5.5 kW at 690 V 50 Hz (AC-3)

[Ui] Rated Insulation Voltage

690 V IEC 60947-4-1 || 600 V UL 60947-4-1 || 600 V CSA C22.2 No 60947-4-1

Device Short Name

TPRST

Poles Description

3P 3 NO

[Icw] Rated Short-Time Withstand Current

210 A 40 °C - 1 s || 105 A 40 °C - 10 s || 61 A 40 °C - 1 min || 30 A 40 °C - 10 min
