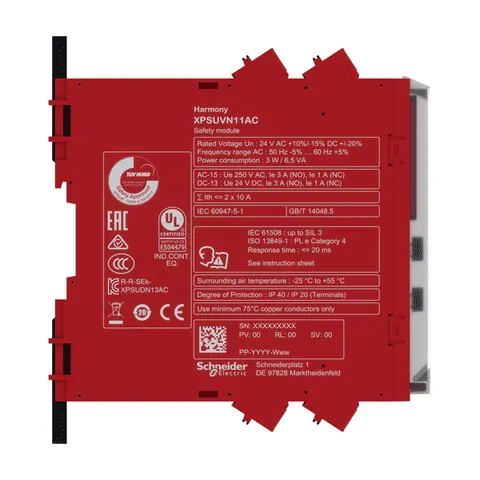

XPSUVN11AC

Environment

Ambient Air Temperature For Operation

-25-55 °C

Ip Degree Of Protection

IP20 terminals)IEC 60529 || IP40 housing)IEC 60529 || IP54 mounting area)IEC 60529

Ambient Air Temperature For Storage

-40-70 °C

Relative Humidity

5-95 % non-condensing

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP1811003EN

Sustainable Offer Status

Green Premium product

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

X

Circularity Profile

ENVEOLI1811003EN

Eu Rohs Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Specifications

Product Certifications

TÜV || cULus

[Us] Rated Supply Voltage

24 V AC - 15...10 % || 24 V DC - 20...20 %

Range Of Product

Harmony Safety Automation

Product Or Component Type

safety module

Safety Module Name

XPSUVN

Number Of Additional Circuits

2 solid state outputs

Output Type

relay, 1 NO, volt-free

Safety Module Application

for zero speed detection

Safety Reliability Data

MTTFd > 30 years ISO 13849-1 || Dcavg = 98.9 % ISO 13849-1 || PFHd = 2.39E-9 1/h ISO 13849-1 || HFT = 1 IEC 62061 || PFHd = 2.39E-9 1/h IEC 62061 || SFF > 99% IEC 62061 || HFT = 1 IEC 61508-1 || PFHd = 2.39E-9 1/h IEC 61508-1 || SFF > 99% IEC 61508-1 || type = B IEC 61508-1

Function Of Module

monitoring 3-phase motor || monitoring 3-phase motor with star-delta starting || monitoring 3-phase motor with variable number of poles || monitoring 3-phase motor with variable number of poles and star-delta starting || monitoring dc motor || monitoring servo motor || monitoring 3-phase motor supplied by variable speed drive || monitoring 3-phase motor supplied by servo drive || controlling enegization to open of guard switch type XCSE, XCSLE, XCSLF, XCST

Safety Level

can reach PL e/category 3 for normally open relay contact ISO 13849-1 || can reach SILCL 3 for normally open relay contact IEC 62061 || can reach SIL 3 for normally open relay contact IEC 61508

Complementary

Height

100 mm

[Ith] Conventional Free Air Thermal Current

6 A NO relay output circuit

Mounting Support

35 mm symmetrical DIN rail

Power Consumption In W

2.0 W

Minimum Output Voltage

5 V relay output

Minimum Output Current

10 mA relay output

Time Delay

0.5 s || 1 s || 2 s || 3 s || 5 s || 8 s || 12 s || 20 s || 35 s || 60 s

Associated Fuse Rating

6 A gG relay output IEC 60947-1

Local Signalling

LED green power power ON || LED red error error || LED yellow state status || LED yellow L12 input line comparison || LED yellow L32 input line comparison

[Uimp] Rated Impulse Withstand Voltage

4 kV II IEC 60947-1

Net Weight

0.2 kg

Standards

IEC 60947-5-1 || IEC 61508-1 functional safety standard || IEC 61508-2 functional safety standard || IEC 61508-3 functional safety standard || IEC 61508-4 functional safety standard || IEC 61508-5 functional safety standard || IEC 61508-6 functional safety standard || IEC 61508-7 functional safety standard || ISO 13849-1 functional safety standard || IEC 62061 functional safety standard

[Ui] Rated Insulation Voltage

690 V phase to phase 2)IEC 60947-1 || 400 V phase to earth 2)IEC 60947-1

[Ie] Rated Operational Current

5 A AC-1 for normally open relay contact || 3 A AC-15 for normally open relay contact || 5 A DC-1 for normally open relay contact || 3 A DC-13 for normally open relay contact

Power Consumption In Va

5.5 VA

Input Voltage

690 V

Connections - Terminals

removable spring terminal block solid or flexible 0.2...2.5 mm² || removable spring terminal block flexible with ferrule 0.25...2.5 mm² single conductor || removable spring terminal block solid or flexible 0.2...1.5 mm² twin conductor || removable spring terminal block flexible with ferrule 2 x 0.25...1 mm² without cable end, with bezel || removable spring terminal block flexible with ferrule 2 x 0.5...1.5 mm² with cable end, with bezel

Width

22.5 mm

Depth

120 mm

Input Detection Threshold

50 mV || 65 mV || 85 mV || 110 mV || 140 mV || 180 mV || 230 mV || 300 mV || 400 mV || 500 mV
