Siemens 3VA2010-6JP46-0AA0

Name: 3VA20 4P 100A 85KA ETU5-LSI BOX
Brand: Siemens
SKU: 3VA2010-6JP46-0AA0

3VA20 4P 100A 85KA ETU5-LSI BOX

1 / 1

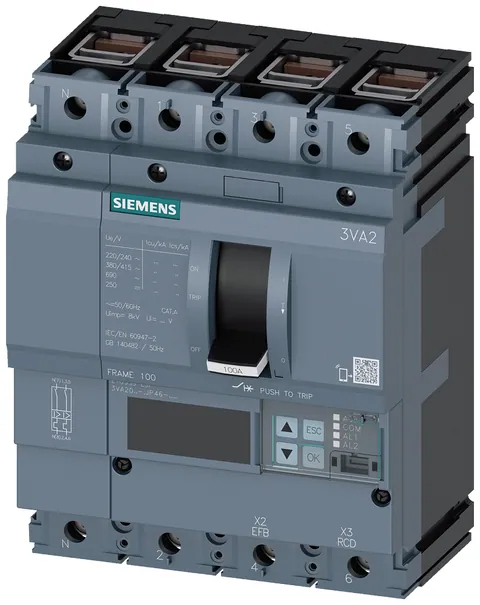

Manufacturer catalogue image

Product Description

Lifecycle Status:

The 3VA20 4P 100A 85KA ETU5-LSI BOX is a low voltage molded case circuit breaker that complies with IEC standards. It is equipped with an electronic trip unit, providing reliable protection for electrical circuits. The device is built on a 3VA20 frame and possesses a high breaking capacity classified as Class H. It can handle a rated current of 100A, with an impressive breaking capacity of 85kA at 415V and 2kA at 690V.

The ETU550 trip unit features an LCD display and offers adjustable overload protection settings, allowing for customization between 40A to 100A. Additionally, it includes short-circuit protection with settings ranging from 0.6 to 10 times the rated current and an instantaneous protection setting between 1.5 to 12 times the rated current. The circuit breaker supports clamp connections and is designed for easy integration into existing systems.

Dimensions of the unit are 5.5 inches in width, 7.1 inches in height, and 4.2 inches in depth, making it suitable for various installation environments. Its design also accommodates top hat rail mounting, enhancing its versatility in control cabinets.

Need more information?

Call us at:+48 17 778 34 19

Compare offers

Payment methods:

Offer details

Offer from:: Trusted supplier — Germany, member since 2024
Availability:: On requestLead time: 5 days
Warranty:: Not specified
Condition:: New Factory Sealed

New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.

The Seller is responsible for shipping the product and invoicing

Specifications

Brand: Siemens
Number of poles: 4
Rated voltage: 690 V
Motor drive optional
Motor drive integrated
Degree of protection (IP): IP40
Rated permanent current Iu: 100 A

Available Offers

(2)

	Condition	Availability	Supplier	Warranty	Action
	Condition New Factory Sealed	Availability On requestLead time: 5 days	Supplier GermanyTrusted supplier — member since 2024	Warranty Not specified
	Condition New Factory Sealed	Availability On requestLead time to be confirmed	Supplier ItalyTrusted supplier — member since 2021, 10–19 employees	Warranty 12 months

Offer with manufacturer lead time

Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.

Documents

Data Sheet

Datasheet for Siemens 3VA2010-6JP46-0AA0, including specifications and features.

Download Data Sheet

CAD Models

3D CAD model and technical drawings, ready for your design software.

Download CAD Model

Product data updated: 16-09-2026
