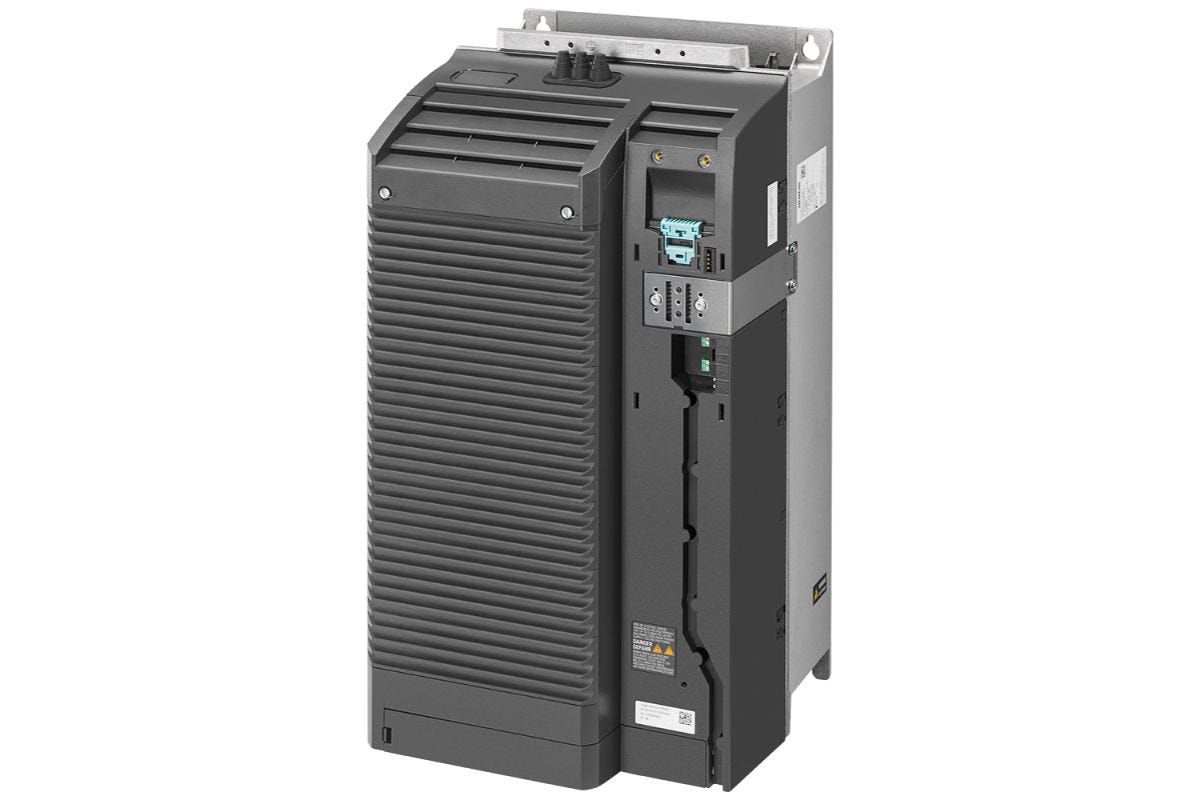

Siemens 6SL3210-1PH25-2UL0
SINAMICS PM240-2 IP20-FSE-U-690V-45KW
1 / 2

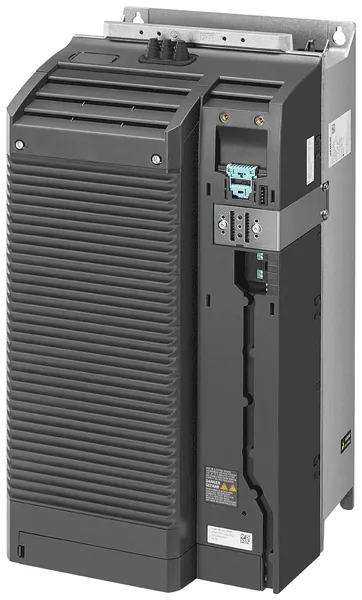

Manufacturer catalogue image
Product Description
RoHS CompliantLifecycle Status:
The SINAMICS G120 POWER MODULE PM240-2 is a robust solution designed for high-performance applications. It features a built-in braking chopper, capable of handling 3AC500-690V with a +10/-20% tolerance and operating at frequencies between 47-63HZ.
This module offers high overload capabilities, delivering up to 37KW for 200% overloads within 3 seconds, 150% overloads within 57 seconds, and 100% overloads within 240 seconds. It operates optimally in ambient temperatures ranging from -20°C to +50°C (High Overload).
For lower overloads, the module can deliver up to 45KW for 150% overloads within 3 seconds, 110% overloads within 57 seconds, and 100% overloads within 240 seconds. It operates effectively in ambient temperatures from -20°C to +40°C (Low Overload).
The module measures 551 x 275 x 237 mm (HxWxD) and is equipped with FSE protection, rated IP20. It does not include a control unit or panel but is approved for CU firmware-version V4.7 HF8.
Send Inquiry
Payment methods:
Offer details
- Best offer from:
- Trusted supplier — Netherlands, member since 2021, 100–499 employees
- Availability:
- 99 pcs.In-StockUpdated at: 05-09-2026
- Warranty:
- 24 months
- Condition:
- New Surplus
New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Siemens
- Input phase number
- 3
- Protection type IP
- IP20
- Output phases, number of
- 3
- Max. mains voltage
- 690 volt
- Min. network voltage
- 500 volt
- Rated output voltage
- 690 volt
