Wago

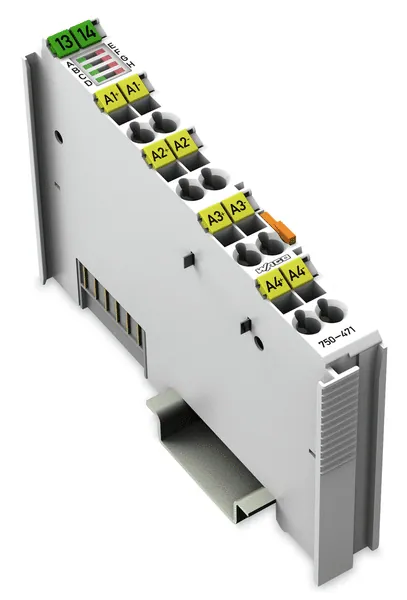

750-471
1 / 3
- Part Number
- 750-471
- Tariff Code
- 85389099990
- UPC
- 4055143764520
- ETIM
- Group Code : EG000024
- Group Description : PLC's
- Class Description : Fieldbus, decentr. periphery - analogue I/O module
- Class Code : EC001596
- Version : 7
£472.40
net1
Payment methods:
- Best offer from:
Trusted Automa.Net Supplier- Availability:
- 2 pcs.In-StockUpdated at: 22-11-2024
- Estimated Delivery:
- On Request
- Condition:
- New Surplus
New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.
Shipping Information
Secure Payment Process
Return & Refund Policies
Shipping Policies
Warranty Policies
Environmental Requirements
- Ambient temperature (operation)
- 0 … +55 °C
- Ambient temperature (storage)
- -25 … +85 °C
- Protection type
- IP20
- Pollution degree
- 2 per IEC 61131-2
- Operating altitude
- 0 … 2000 m / 0 … 6562 ft
- Mounting position
- Horizontal (standing/lying); vertical
- Relative humidity (without condensation)
- 95 %
- Vibration resistance
- 4g per IEC 60068-2-6
- Shock resistance
- 15g per IEC 60068-2-27
- EMC immunity to interference
- Per EN 61000-6-2, marine applications
- EMC emission of interference
- Per EN 61000-6-4, marine applications
- Exposure to pollutants
- Per IEC 60068-2-42 and IEC 60068-2-43
- Permissible H2S contaminant concentration at a relative humidity 75 %
- 10 ppm
- Permissible SO2 contaminant concentration at a relative humidity 75 %
- 25 ppm
Connection Data
- Connection technology: inputs/outputs
- 8 x CAGE CLAMP®
- Connection type 1
- Inputs/outputs
- Solid conductor
- 0.08 … 2.5 mm² / 28 … 14 AWG
- Fine-stranded conductor
- 0.08 … 2.5 mm² / 28 … 14 AWG
- Strip length
- 8 … 9 mm / 0.31 … 0.35 inches
Physical Data
- Width
- 12 mm / 0.472 inches
- Height
- 100 mm / 3.937 inches
- Depth
- 69.8 mm / 2.748 inches
- Depth from upper-edge of DIN-rail
- 62.6 mm / 2.465 inches
Material Data
- Housing material
- Polycarbonate; polyamide 6.6
- Fire load
- 0.967 MJ
- Weight
- 51.199 g
- Conformity marking
- CE
Technical Data
- Number of analog inputs
- 4
- Total number of channels (module)
- 4
- Signal type
- Voltage || Current
- Signal type (current)
- 0 … 20 mADC; 4 … 20 mADC; 3.6 … 21 mADC; -20 … +20 mADC
- Signal type (voltage)
- 0 … 10 VDC; -10 … +10 VDC; -0.2 … +0.2 VDC
- Signal type (configurable)
- Yes
- Sensor connection
- 4 x (2-wire)
- Input filter
- 50 Hz; 60 Hz; filter off
- Input voltage (max.)
- 31.2 VDC
- Signal characteristics
- Differential
- Diagnostics
- Measurement range overflow/underflow; wire break in operating mode 4 … 20 mA and 3.6 … 21 mA NE43; overload in operating mode 0 … 20 mA, 4 … 20 mA, ±20 mA, 3.6 … 21 mA NE43
- Resolution [bit]
- 16 bits
- Input resistance (max.)
- 120 Ω
- Data width
- 4 x 16-bit data; 4 x 8-bit control/status (optional)
- Internal resistance
- 100 kΩ
- Conversion time (typ.)
- 10 ms
- Conversion time
- Exception: The ±200 mV measurement range has a conversion time of 10 s and is therefore only suitable for slow systems.
- Reference for measurement error
- Input ranges
- Measurement error (reference temperature)
- 25 °C
- Measurement error, deviation (max.) from the upper-range value
- 0.1 %
- Reference for measurement error (2)
- ±200 mV
- Measurement error, reference temperature (2)
- 25 °C
- Measurement error, deviation (max.) of the upper-range value (2)
- 0.3 %
- Temperature error (max.) of the upper-range value
- 0.01 %/K
- Configuration options
- WAGO-I/O-CHECK || CODESYS Library || e!COCKPIT
- Supply voltage (system)
- 5 VDC; via data contacts
- Current consumption (5 V system supply)
- 100 mA
- Supply voltage (field)
- 24 VDC; via power jumper contacts (power supply via blade contact; transmission via spring contact)
- Isolation
- Functional insulation: 2000 VDC system/channel; 2000 VDC channel/channel
- Indicators
- LED (A-D) green: Function AI 1 … AI 4; LED (E-H) red: Error AI 1 … AI 4
- Number of incoming power jumper contacts
- 2
- Number of outgoing power jumper contacts
- 2
- Current carrying capacity (power jumper contacts)
- 10 A
Mechanical Data
- Mounting type
- DIN-35 rail
Specifications
- Product Group Code
- 0015
Commercial Data
- Packaging type
- Box
- Country of origin
- DE
- GTIN
- 4055143764520
- Customs tariff number
- 85389099990
