Weidmuller 1148820000

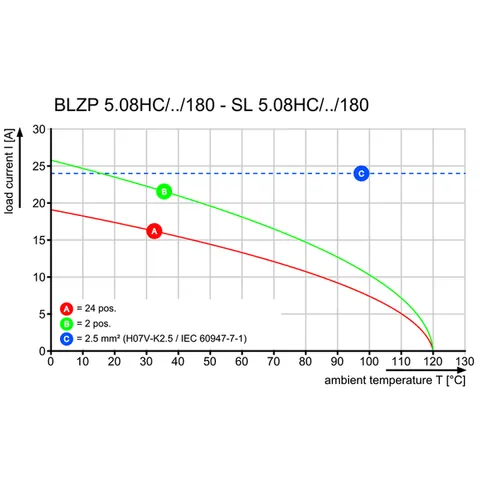

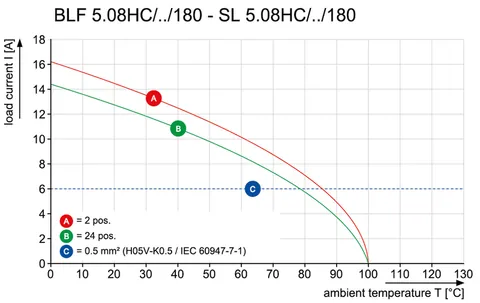

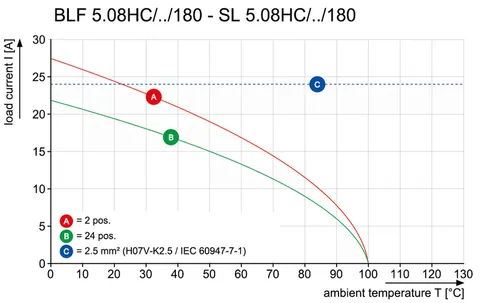

The 5.08 mm PCB plug-in connector is designed for board connections, featuring a male header with a configuration of 13 poles and a 180° outgoing elbow. It utilizes a THT solder connection with a solder pin length of 3.2 mm, making it suitable for various applications. The product complies with UL standards, specifically UL 1059, and is rated for a voltage of 300 V and a current of 18.5 A under specific conditions.

Constructed from PA GF insulating material, this connector exhibits a black color, with a Comparative Tracking Index (CTI) of ≥ 550. Its design ensures insulation strength of ≥ 108 Ω and adheres to UL 94 V-0 flammability ratings. The operational temperature range is wide, spanning from -50 °C to 100 °C, allowing for versatile usage in different environments.

With dimensions of 76.04 mm in width, 15.2 mm in height, and 8.5 mm in depth, this connector is compact, weighing only 4.412 g. The product is part of the OMNIMATE Signal series, ensuring compatibility with various applications that require reliable connectivity. Additionally, it offers a maximum pulling force of 7.5 N and a plugging force of 10 N per pole, with up to 25 plugging cycles. The design also includes provisions for coding, enhancing its usability in complex assemblies.
