IFM AL5228

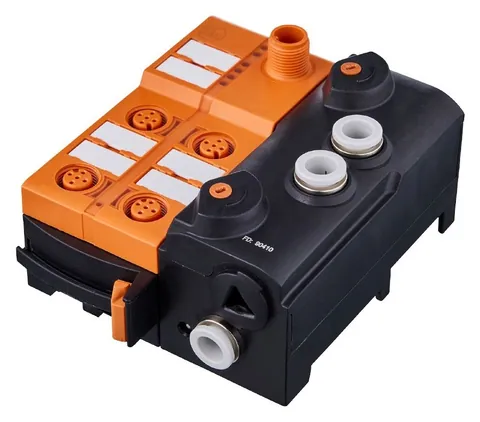

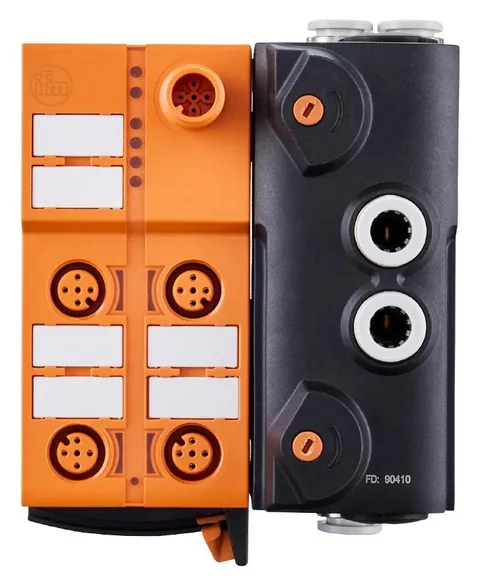

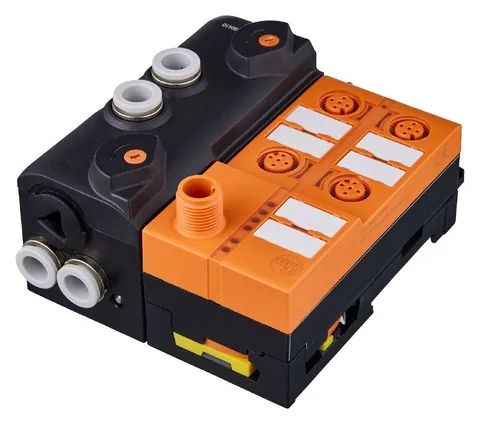

IO-Link AirBox with Quick Mounting Technology IOL AirBox 2x3/2 4x2DI
1 / 3
Manufacturer catalogue image
Manufacturer catalogue image
Manufacturer catalogue image
Product Description
The IO-Link AirBox facilitates decentralized control of cylinders and valve actuators, promoting high energy efficiency by positioning the device close to the actuator. This model features a combination of an IO-Link device and a solenoid valve, streamlining the installation process through its quick mounting technology. The Designation Code for this unit is IOL AirBox 2x3/2 4x2DI.
With a robust construction suitable for DIN rail mounting, this device operates effectively in wet environments and is designed for media such as compressed air. It supports a medium temperature range of -10 to 50 °C and is certified for protection classes IP 65 and IP 67, making it apt for various industrial applications.
In terms of electrical specifications, the operating voltage ranges from 18 to 30 V DC, with a nominal voltage of 24 V DC and current consumption varying between 80 to 680 mA at full load. The device features 8 digital inputs configured for PNP input circuits, with a maximum total current rating of 400 mA.
Equipped with two pneumatic outputs, it delivers a reliable actuator supply, and its communication interface operates via IO-Link with a transmission rate of 38.4 kBaud. The product supports a minimum process cycle time of 2.7 ms, ensuring efficient operation.
Mechanical properties include a weight of 311 g and dimensions of 109 x 85 x 52 mm, constructed from PA 6.6 and PA 6 materials. It incorporates LEDs for operational and error displays, enhancing user interaction.
For optimal...
Send Inquiry
Payment methods:
Offer details
- Best offer from:
Trusted supplier — Poland, member since 2021, 50–99 employees- Availability:
- 0 pcs.On RequestUpdated at: 02-09-2026
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- IFM
- Number of inputs and outputs
- Number of digital inputs: 8; Number of pneumatic outputs: 2
- Design
- housing for DIN rail mounting
- Application
- field installation; for use in wet environments
- Media
- compressed air
- Medium temperature [°C]
- -10...50
- Operating voltage [V]
- 18...30 DC; (to SELV/PELV)
