Mersen 83020140

Name: SPD Type 2, 40kA, Ucpv 1060V, 3 Poles, 3 Modules, Pluggable
Brand: Mersen
SKU: 83020140

SPD Type 2, 40kA, Ucpv 1060V, 3 Poles, 3 Modules, Pluggable

1 / 2

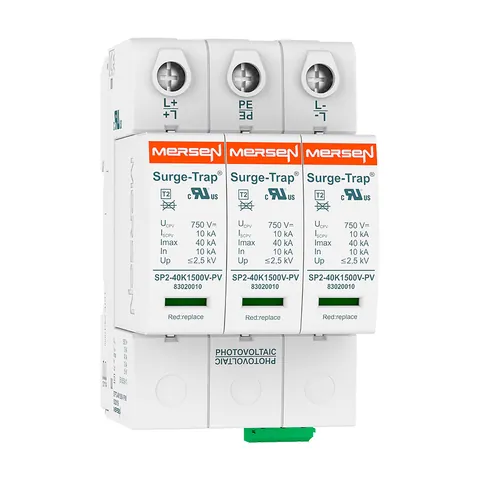

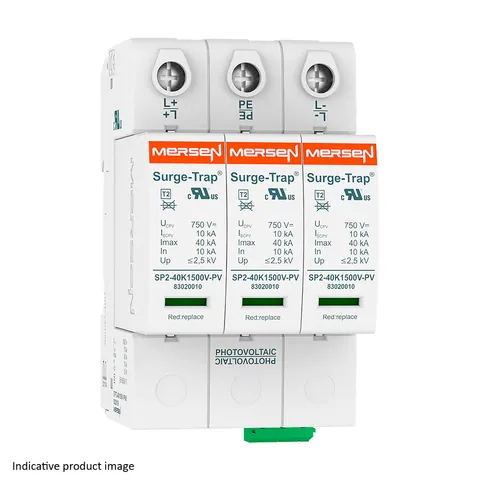

Manufacturer catalogue image

Product Description

The SPD Type 2 device is designed to deliver overvoltage protection tailored for photovoltaic applications. With a maximum discharge current capacity of 40 kA, this device ensures reliable operation across various installations, including large-scale solar farms and off-grid systems. It utilizes Mersen's dynamic thermal disconnection system, effectively eliminating the need for additional overcurrent protection, thanks to its high short-circuit withstand rating.

This model features a nominal operating voltage rating of 1060 Vdc and supports multiple MPPT (Maximum Power Point Tracker) inverters, making it suitable for diverse configurations. The surge protective device is compliant with IEC 61643-31 and UL 1449 standards, ensuring robust performance in critical environments.

Operating temperature ranges from -40 °C to 85 °C, with a fast response time of 25 ns, further enhancing its reliability. The device also incorporates various protection modes for photovoltaic systems, with a torque rating of 35.4 lb-in for secure installation. The designation code for this product is Surge-Trap® Pluggable STPT2 Series - 40kA PV.

Send Inquiry

Payment methods:

Offer details

Best offer from:: Trusted supplier — Italy, member since 2021, 10–19 employees
Availability:: 0 pcs.
On Request
Updated at: 02-09-2026
Warranty:: 12 months
Condition:: New Factory Sealed

New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.

The Seller is responsible for shipping the product and invoicing

Specifications

Brand: Mersen
Maximum discharge current (8/20μs): 40 kA
Nominal discharge current (8/20μs): 10 kA, 20 kA
Ucpv: 65, 80, 660, 1060 Vdc and 1500 Vdc
Iscpv: 10 kA (EN 50539-11), no back-up fuse required
SCCR: 50 kA, 65 kA, 100 kA (UL 1449 4th Ed.)
Max Operating Temp: 85 °C

Access our platform to find more offers

Compare offers globally
Direct supplier contact
RFQs, Quotes, and Orders
BOM Search

Sign UpFree 14-day trial available

Offer with manufacturer lead time

Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.

Get Quote

Documents

Data Sheet

Datasheet for Mersen 83020140, including specifications and features.

Download Data Sheet

TraceParts

CAD Models

3D CAD model and technical drawings, ready for your design software.

Download CAD Model
