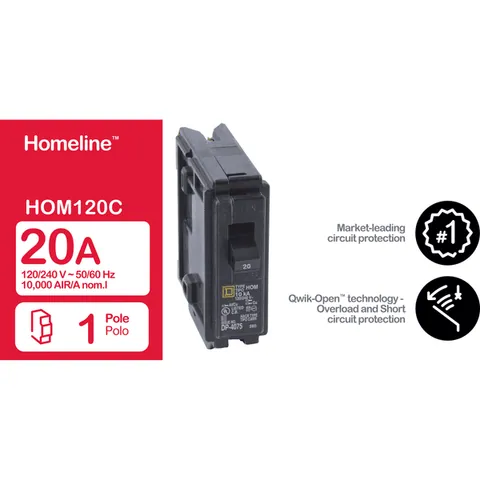

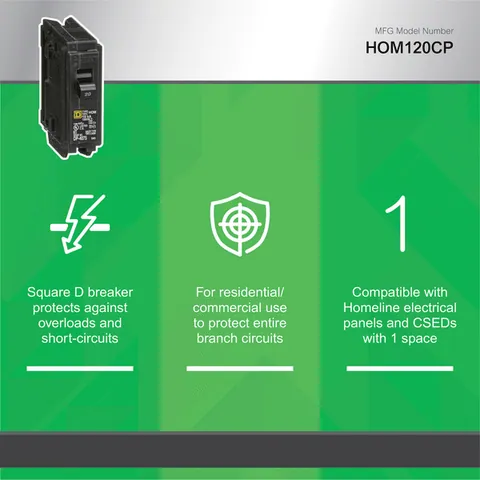

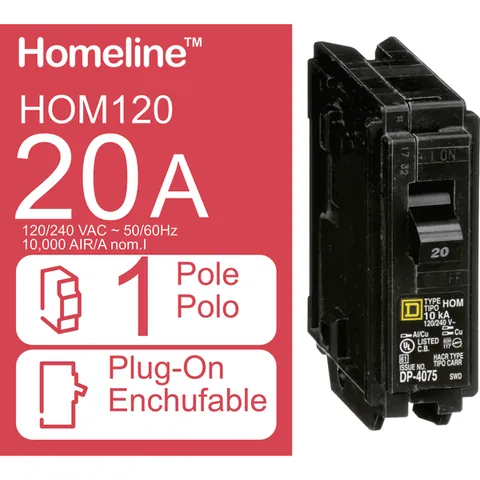

Schneider Electric HOM120
Mini circuit breaker, Homeline, 20A, 1 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL
1 / 11
Manufacturer catalogue image
Manufacturer catalogue image
Manufacturer catalogue image
Manufacturer catalogue image
Manufacturer catalogue image
Manufacturer catalogue image
Manufacturer catalogue image
Manufacturer catalogue image
Manufacturer catalogue image
Manufacturer catalogue image
Product Description
Lifecycle Status:
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 20A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.
Send Inquiry
Payment methods:
Offer details
- Best offer from:
Trusted supplier — Romania, member since 2023, 1–4 employees- Availability:
- 1 pc.On RequestUpdated at: 22-08-2026
- Condition:
- New Surplus
New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Schneider Electric
- Ambient Air Temperature For Operation
- 40 °C
- Warranty
- Lifetime
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1308001
- Sustainable Offer Status
- Green Premium product
Access our platform to find more offers
Register now to explore 36 mln offers from verified suppliers worldwide.
- Compare offers globally
- Direct supplier contact
- RFQs, Quotes, and Orders
- BOM Search
Sign UpFree 14-day trial available
Documents
Data Sheet
Datasheet for Schneider Electric HOM120, including specifications and features.
Download Data Sheet
TracePartsCAD Models
3D CAD model and technical drawings, ready for your design software.
Download CAD Model

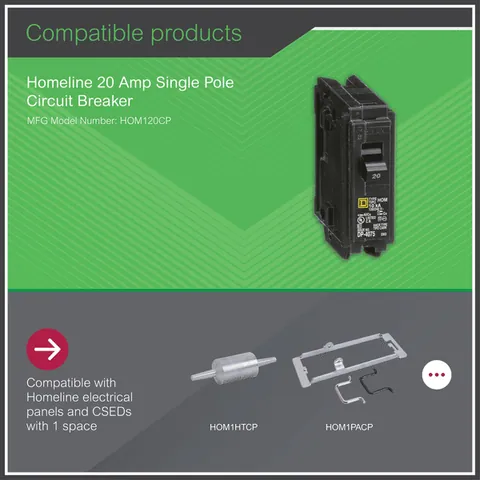

Compatible Products
