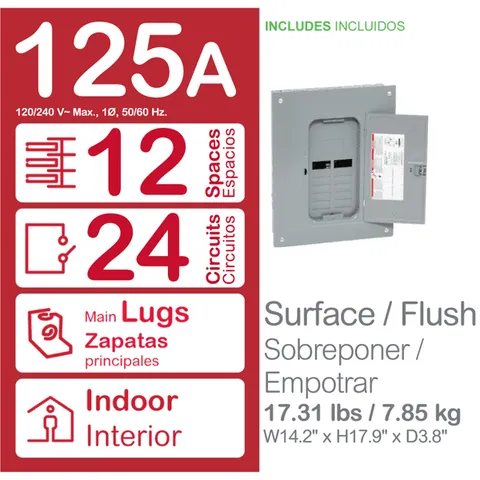

Schneider Electric HOM1224L125PC
Load center, Homeline, 1 phase, 12 spaces, 24 circuits, 125A convertible main lugs, PoN, NEMA1, combo cover
1 / 6
Manufacturer catalogue image
Manufacturer catalogue image
Manufacturer catalogue image
Manufacturer catalogue image
Manufacturer catalogue image
Manufacturer catalogue image
Product Description
Lifecycle Status:
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center is supplied with convertible mains that are rated at 125A 120/240 VAC single phase. Homeline load center provides a 10 kA breaking capacity. This system provides 12 spaces in a NEMA 1 indoor enclosure with a combination flush/surface cover. The electrical connections are box lugs. The box lugs will accept a wire range of 6 AWG to 1 AWG copper or 6 AWG to 2/0 AWG aluminum wire. This Homeline load center has a height of 17.92 inches, a width of 14.25 inches, and depth of 3.74 inches. Homeline load centers are UL Listed.
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
Send request for price
Payment methods:
Specifications
- Brand
- Schneider Electric
- Bus Rated Current
- 125.0 A
- Phase
- 1 phase
- Short-Circuit Current
- 10 kA
- Number Of Tandem Circuit Breakers
- 12
- Material
- tin plated aluminium: busbar
- Surface Finish
- baked enamel Gray
