Schneider Electric HOM250

Name: Mini circuit breaker, Homeline, 50A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL
Brand: Schneider Electric
SKU: HOM250

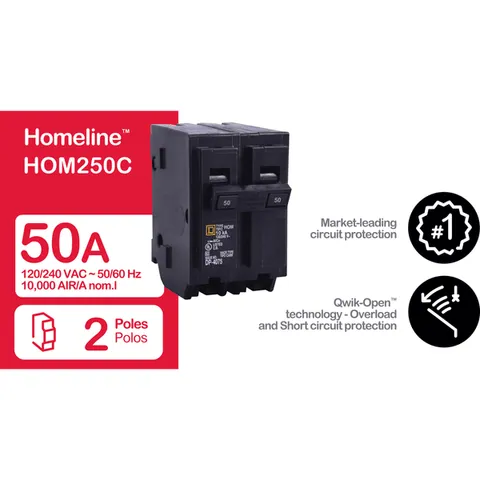

Mini circuit breaker, Homeline, 50A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL

1 / 14

Manufacturer catalogue image

Product Description

Lifecycle Status:

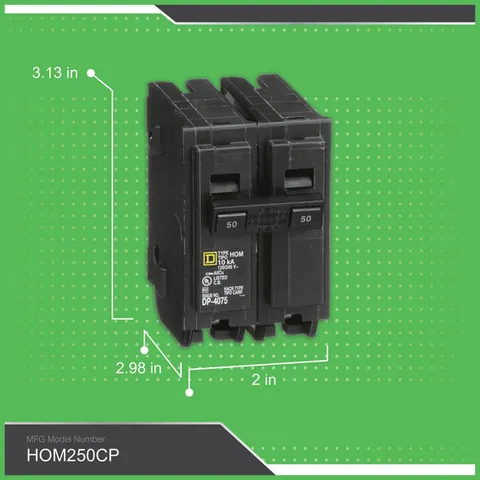

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 50A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs that will accept 1 wires. The box lugs will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.

Send Inquiry

Payment methods:

Offer details

Best offer from:: Trusted supplier — Romania, member since 2023, 1–4 employees
Availability:: 1 pc.
On Request
Updated at: 22-08-2026
Condition:: New Surplus

New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.

The Seller is responsible for shipping the product and invoicing

Specifications

Brand: Schneider Electric
Ambient Air Temperature For Operation: 40 °C
Warranty: Lifetime
Rohs Exemption Information: Yes
Mercury Free: Yes
Environmental Disclosure: ENVPEP1308001
Sustainable Offer Status: Green Premium product

Access our platform to find more offers

Compare offers globally
Direct supplier contact
RFQs, Quotes, and Orders
BOM Search

Sign UpFree 14-day trial available

Documents

Data Sheet

Datasheet for Schneider Electric HOM250, including specifications and features.

Download Data Sheet

TraceParts

CAD Models

3D CAD model and technical drawings, ready for your design software.

Download CAD Model
