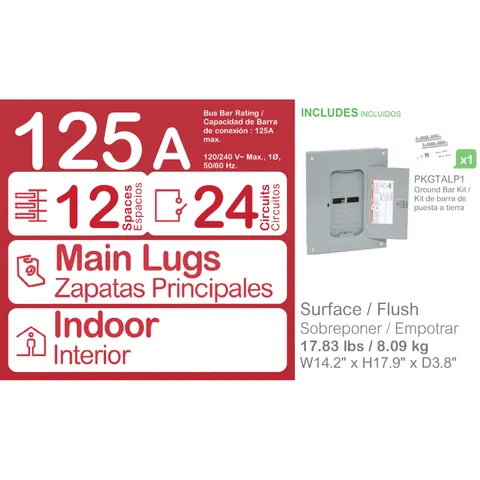

HOM1224L125PGC

Additional Information

Part Number

HOM1224L125PGC

UPC

785901864776

UNSPSC

39121101

Tariff Code

8537109150

Country of Origin

US

Specifications

Range Of Product

Homeline

Provided Equipment

grounding bar 1 )

Product Or Component Type

Load Center

Number Of Circuits

24

Number Of Spaces

12

Nema Degree Of Protection

NEMA 1 indoor

Cover Type

combination flush/surface cover

Line Rated Current

125 A

Load Center Type

PoN Convertible Mains (lugs)

Complementary

Height

455 mm

Bus Rated Current

125.0 A

Phase

1 phase

Short-Circuit Current

10 kA

Number Of Tandem Circuit Breakers

12

Material

tin plated aluminium: busbar

Surface Finish

baked enamel Gray

Enclosure Material

welded sheet steel

Awg Gauge

AWG 6...AWG 2/0 aluminium || AWG 6...AWG 1 copper

Width

362 mm

Wiring Configuration

3-wire

Depth

95 mm

Box Number

6

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP1403002

Sustainable Offer Status

Green Premium product

Toxic Heavy Metal Free

Yes

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

China Rohs Regulation

Pro-active China RoHS declaration (out of China RoHS legal scope)

Circularity Profile

N/A

Eu Rohs Directive

Compliant

Environment

Product Certifications

UL listed file E-6294

Ambient Air Temperature For Operation

-5 °C || 40 °C
