Schneider Electric HOM816L125PRB

Name: Load center, Homeline, 1 phase, 8 spaces, 16 circuits, 125A convertible main lugs, PoN, NEMA3R
Brand: Schneider Electric
SKU: HOM816L125PRB

Load center, Homeline, 1 phase, 8 spaces, 16 circuits, 125A convertible main lugs, PoN, NEMA3R

1 / 6

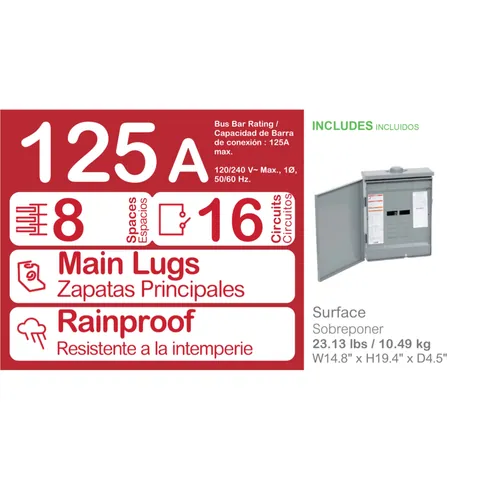

Manufacturer catalogue image

Product Description

Lifecycle Status:

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center is supplied with convertible mains that are rated at 125A 120/240 VAC single phase. Homeline load center provides a 10 kA breaking capacity. This system provides 8 spaces in a NEMA 3R rain proof enclosure. The electrical connections are box lugs. The box lugs will accept a wire range of 6 AWG to 1 AWG copper or 6 AWG to 2/0 AWG aluminum wire. This Homeline load center has a height of 18.92 inches, a width of 14.75 inches, and depth of 4.52 inches. Homeline load centers are UL Listed.

Get up to 90 days payment terms from 500+ suppliers
Reselling discounts up to 40%!

Send request for price

Send Inquiry

Payment methods:

Request a Quote and we will send you information on availability and price.

Specifications

Brand: Schneider Electric
Rohs Exemption Information: Yes
Mercury Free: Yes
Environmental Disclosure: ENVPEP1403002
Sustainable Offer Status: Green Premium product
Toxic Heavy Metal Free: Yes
Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Access our platform to find more offers

Compare offers globally
Direct supplier contact
RFQs, Quotes, and Orders
BOM Search

Sign UpFree 14-day trial available

Documents

Data Sheet

Datasheet for Schneider Electric HOM816L125PRB, including specifications and features.

Download Data Sheet

TraceParts

CAD Models

3D CAD model and technical drawings, ready for your design software.

Download CAD Model
