Schneider Electric LUCC05BL
TeSys Ultra Control Unit, Class 10 Protection and Diagnostics for 1P Motors
1 / 1

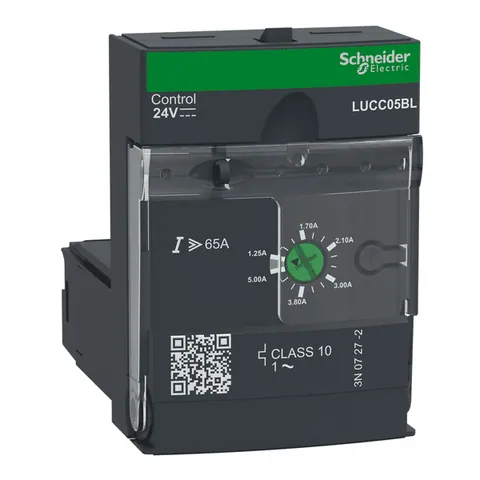

Manufacturer catalogue image
Product Description
Lifecycle Status:
The TeSys Ultra Control Unit is an advanced solution designed to enhance the performance of power bases LUB120, LUB320, and LUB380. This control unit provides full protection for motors with a rated current of up to 5A (adjustable), overload tripping class 10, short circuit at 13 times the maximum current, and overcurrent at 14.2 times the rated current. It also offers phase loss and insulation fault protection, ensuring the safety of your equipment.
The TeSys Ultra Control Unit comes equipped with a thermal overload alarm that can be used locally via a LUFDA module or remotely via a LULC module. Additionally, it features a test push button for simulating overload conditions. This control unit is designed to work with a 24V DC voltage for the control of the starter.
The TeSys Ultra Control Unit is certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), and it complies with Green Premium standards (RoHS/REACh).
Send Inquiry
Payment methods:
Offer details
- Best offer from:
Trusted supplier — Romania, member since 2023, 1–4 employees- Availability:
- 1 pc.On RequestUpdated at: 22-08-2026
- Condition:
- New Surplus
New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Schneider Electric
- Ambient Air Temperature For Operation
- -25-70 °C
- Resistance To Radiated Fields
- 10 V/m 3 IEC 61000-4-3
- Shock Resistance
- 10 gn power poles open IEC 60068-2-27 || 15 gn power poles closed IEC 60068-2-27
- Vibration Resistance
- 2 gn 5-300 Hz power poles open IEC 60068-2-6 || 4 gn 5-300 Hz power poles closed IEC 60068-2-6
- Immunity To Microbreaks
- 3 ms
- Immunity To Voltage Dips
- 70 % / 500 ms IEC 61000-4-11
