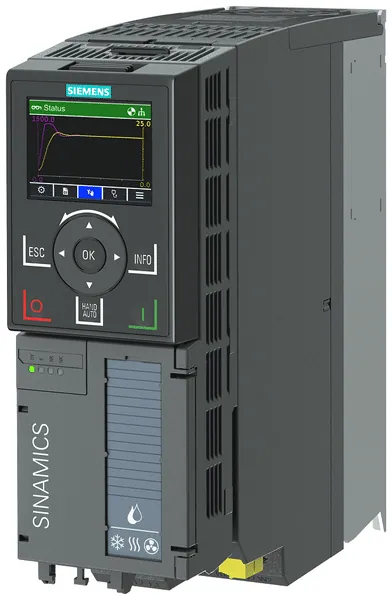

Siemens 6SL3220-3YE18-0AB0

The SINAMICS G120X operates with a rated power of 3 kW and supports input voltages from 380 to 480 V with a mains frequency of 50/60 Hz. The device is capable of delivering a nominal output current of 8 A and can achieve a maximum output frequency of 550 Hz. With a degree of protection rated at IP20, this converter is suited for various industrial environments.

It features six digital inputs and two analogue inputs, along with one analogue output. The G120X is equipped with integrated fieldbus protocols including MODBUS RTU and BACnet MS/TP, enhancing its connectivity in industrial control systems. The design dimensions measure 73 mm in width, 209 mm in depth, and 232 mm in height, making it a compact solution for space-constrained installations.

Additional specifications include a radio interference suppression filter compliant with category C2 and operational temperature ranges from -20 to +45 °C. The converter does not support PC connections or various advanced protocols, but it does have one RS-232 and one RS-485 interface for serial communication.

For replacement parts, only the preferred type 6SL3220-3YE18-0AF0 is applicable, with specific corner types available for related models. This product is classified under the designation code SIOS 109761925.
