Weidmuller 1234680000

The PM 5.00/06/90 3.5SN OR BX terminal block is specifically engineered for printed circuit board connections. It includes six poles and utilizes a pressure clamp connection method, accommodating a maximum clamping range of 2.5 mm². The solder pin length measures 3.5 mm, facilitating efficient mounting and stability on PCBs.

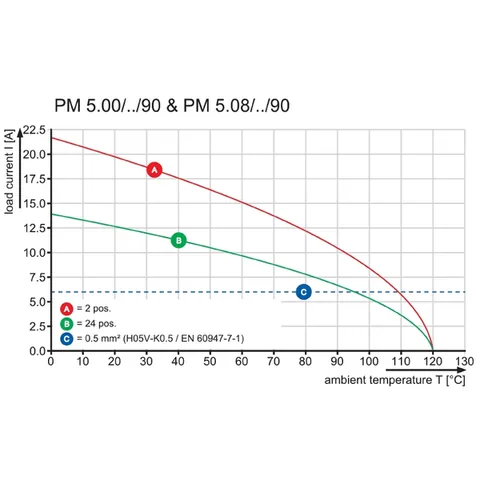

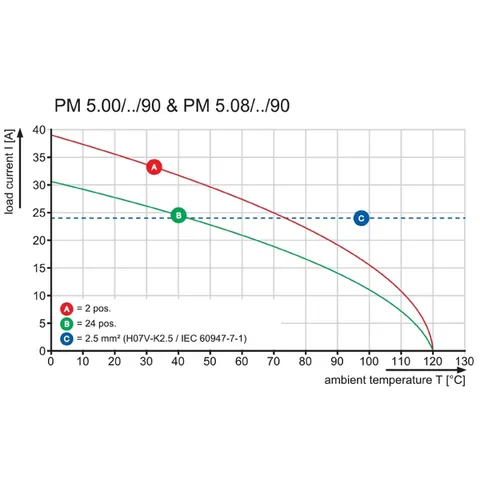

Complying with standards such as UL 1059 and IEC 60664-1, this component supports a rated voltage of 300 V and a rated current up to 15 A for various applications. The insulator is manufactured from Wemid (PA) with a comparative tracking index (CTI) of ≥ 600, ensuring reliability under operational conditions.

Dimensions include a width of 30.6 mm and a height of 13.5 mm, with an operating temperature range from -50 °C to 120 °C. The terminal block is packaged in a box, with dimensions 50 mm x 140 mm x 325 mm, ensuring secure storage and transport.
