Weidmuller 9457900500

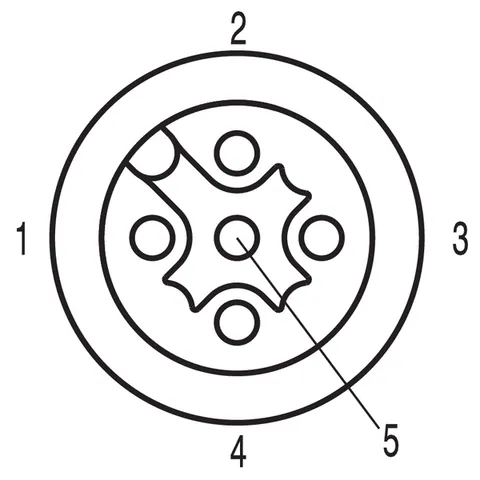

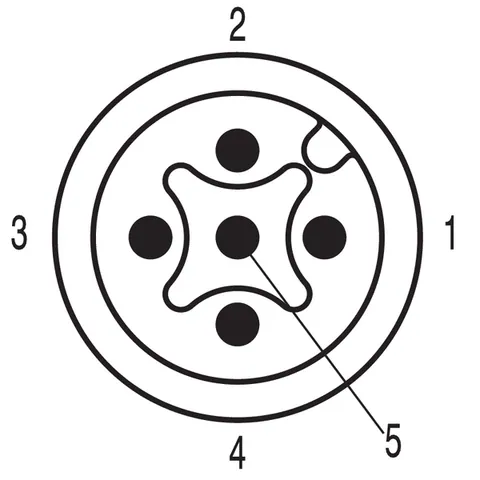

This connection line, designated as M12 to M12, features a configuration of 5 poles and a total length of 5 meters. The design includes a pin at a 90° angle and a socket also at a 90° angle, supporting a rated voltage of 125 V and a rated current of 4 A. The connection is crafted from PUR, with a diecast zinc threaded ring, ensuring a protection degree of IP65, IP66, IP67, and IP68 when securely fastened.

The line operates effectively within a temperature range of -25 to +80 °C and has a net weight of 207 g. Additionally, the contact surfaces are gold-plated, enhancing conductivity and durability. The core cross-section is 0.34 mm² and the outer diameter measures 5 ± 0.2 mm, suitable for various applications including use in cable carriers, with a minimum bending radius of 5 times the cable diameter in stationary conditions.

Approval certifications include cULus and compliance with ROHS standards, with the connector adhering to IEC 61076-2-101 specifications. This product is designed for high-performance environments, featuring resistance to oils and hydrolysis, as well as a torsion resistance of 360° per meter.
