Honeywell E50-480100-R06NSPSCS-NS

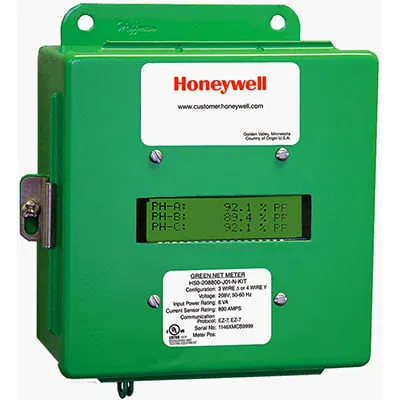

The Class 5000 Smart Meter (H50) incorporates advanced dual protocol communications, facilitating simultaneous connectivity with up to two distinct energy monitoring systems. These systems may include Building Automation Systems (BAS) for energy monitoring, billing applications, or Measurement and Verification (M&V) reporting tools.

Featuring a large 4-line LCD display with backlight, this meter ensures clear visibility of data. Communication options include both RS485 and Ethernet protocols, enhancing integration capabilities in various environments. The meter is compliant with ANSI C12.20 and UL/CUL standards, ensuring reliable performance.

With dimensions of 6.5 inches in width, 7.8 inches in height, and a depth of 3.4 inches, it weighs 5.1 pounds. This device operates effectively within a temperature range of -4 °F to 122 °F (-20 °C to 50 °C) and can withstand humidity levels of up to 95% non-condensing. Notably, it is classified as a Class 5000 meter with an accuracy of ±1% across the rated load spectrum.

The Class 5000 meter does not include current sensors, instead, it utilizes solid-core current sensor technology, operating under a current capacity of 100 A. Its input voltage configuration supports both 3 and 4 wire systems, making it suitable for a variety of commercial and industrial applications.

This product’s designation code is H50.
