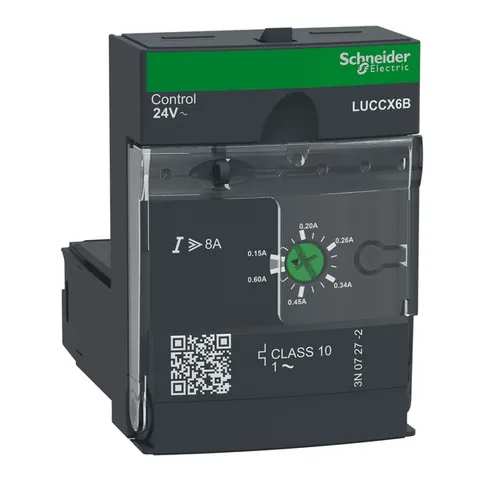

Schneider Electric LUCCX6B
TeSys Ultra Control Unit, Class 10, 0.15A to 0.6A, 1P Motor Protection & Diagnostics
Product Description
The TeSys U control unit is designed to be inserted into advanced power bases such as LUB120, LUB320, and LUB380 to form a comprehensive starter controller for 1-phase motor applications up to 0.04kW at 400V. This unit offers robust protection for motors with adjustable rated currents ranging from 0.15A to 0.6A, overload tripping class 10, and short circuit protection at 13 times the maximum current.
For diagnostics, it provides a thermal overload alarm that can be managed using an additional function module (not included) and a test push button for simulating overload conditions. The unit is powered by a 24V AC voltage for controlling the starter through its control terminals A1/A2 located in the power base.
This product is certified when used with LUB power bases (IEC, UL, CSA, CCC, EAC, Marine), and it complies with Green Premium standards (RoHS/REACh).
Need more information?
Offer details
- Offer from:
Trusted supplier — Romania, member since 2023, 1–4 employees - Availability:
- On requestLead time: 21 days
- Warranty:
- Not specified
- Condition:
- New Surplus
Specifications
- Brand
- Schneider Electric
- Ambient Air Temperature For Operation
- -25-70 °C
- Resistance To Radiated Fields
- 10 V/m 3 IEC 61000-4-3
- Non-Dissipating Shock Wave
- 1 kV serial mode IEC 60947-6-2 || 2 kV common mode IEC 60947-6-2
- Shock Resistance
- 10 gn power poles open IEC 60068-2-27 || 15 gn power poles closed IEC 60068-2-27
- Vibration Resistance
- 2 gn 5-300 Hz power poles open IEC 60068-2-6 || 4 gn 5-300 Hz power poles closed IEC 60068-2-6
- Immunity To Microbreaks
- 3 ms
Available Offers
(3)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Surplus | Availability On requestLead time: 21 days | SupplierRomaniaTrusted supplier — member since 2023, 1–4 employees | Warranty Not specified | |
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier GermanyTrusted supplier — member since 2024 | Warranty Not specified | |
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier ItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Schneider Electric LUCCX6B, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
Product data updated: 22-08-2026
