Weidmuller 9457271000

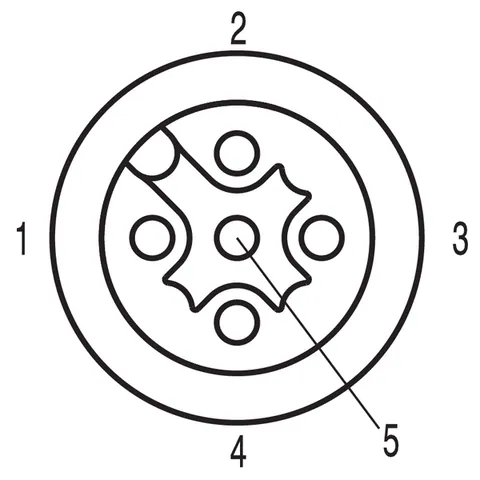

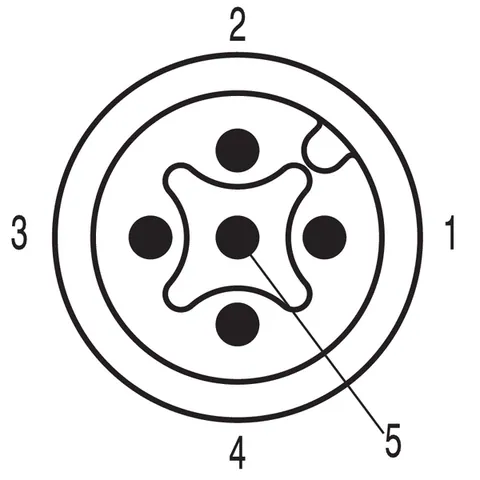

This M12 connecting line is tailored for sensor and actuator applications, offering a length of 10 meters and a configuration of 5 poles. The connection type features a straight socket with a 90° orientation. It is constructed with a sheath material of PUR and has a rated voltage of 125 V along with a current rating of 4 A. The product adheres to the IEC 61076-2-101 standard, ensuring compatibility with various equipment.

The housing material is designed to withstand a temperature range of -25 to +80 °C, making it suitable for diverse operating conditions. The product provides protection degrees of IP65, IP66, IP67, and IP68 when properly screwed in, thus ensuring reliability in harsh environments. The connection thread is specified as M12 / M12, with a tightening torque of 0.8 - 1.2 Nm.

With a core cross-section of 0.34 mm² and an outside diameter of 5 ± 0.2 mm, the cable is built for flexibility and durability. It is not shielded but is resistant to hydrolysis and microbes, and it meets various resistance standards for oils and flames. The assembly supports bending cycles of up to 2 million, ensuring long-lasting performance in dynamic applications. This product is classified under various standards, including ETIM and EClass, and complies with environmental regulations.
