Schneider Electric GV4PE02N
Motor circuit breaker, TeSys GV4, 3P, 2A, Icu 50kA, thermal magnetic, Everlink terminals
1 / 1

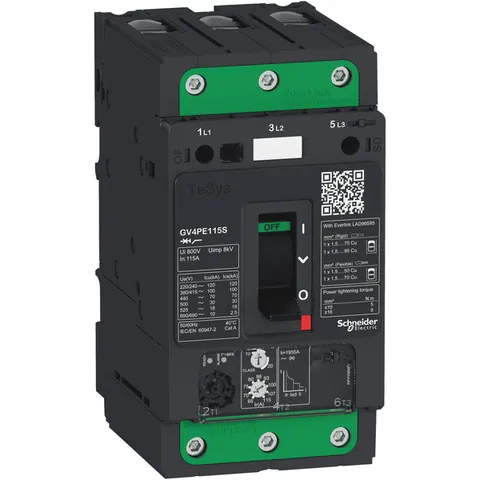

Manufacturer catalogue image
Product Description
Lifecycle Status:
The Schneider Electric TeSys GV4 Motor Circuit Breaker is a robust and reliable solution designed to protect 3-phase motors with a rating of 0.25-0.75kW at 400V. This circuit breaker offers thermal magnetic protection, providing an additional layer of motor protection. It has a breaking capacity of Icu 50kA@400V and can be controlled by toggling the start-stop switch. The connection is facilitated through Everlink BTR screw terminals.
The TeSys GV4 Motor Circuit Breaker comes with adjustable thermal protection settings, allowing for a current setting (Ir) in the range of 0.8-2A and selectable tripping classes of 10 or 20. The magnetic protection is set at 17 In. It also includes additional protections such as short time delay protection Isd at 13 Ir, phase unbalance and loss protection, and ground fault protection.
This circuit breaker features internal locations for auxiliary contact blocks (OF, SD) and voltage trip units (MN, MX). It is multi-standard certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), and Green Premium compliant (RoHS/REACh).
Send Inquiry
Payment methods:
Offer details
- Best offer from:
Trusted supplier — Romania, member since 2023, 1–4 employees- Availability:
- 1 pc.On RequestUpdated at: 22-08-2026
- Condition:
- New Surplus
New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Schneider Electric
- Product Certifications
- IEC || UL || CSA || CCC || EAC || ATEX || EU-RO MR
- Ik Degree Of Protection
- IK07 IEC 62262
- Ambient Air Temperature For Operation
- -25-70 °C
- Standards
- CSA C22.2 No 60947-4-1 || UL 60947-4-1 || EN/IEC 60947-4-1 || EN/IEC 60947-2
- Climatic Withstand
- IACS E10
- Pollution Degree
- 3
